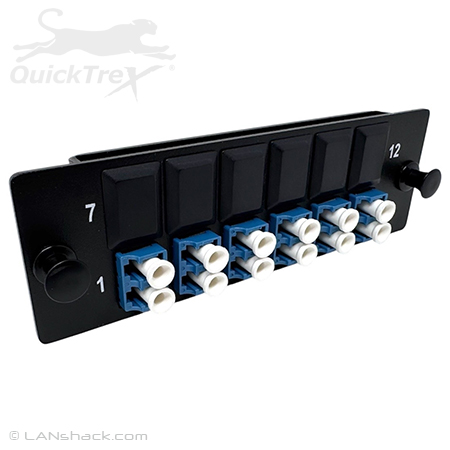

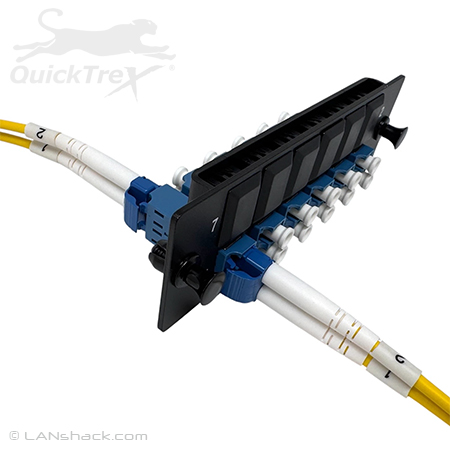

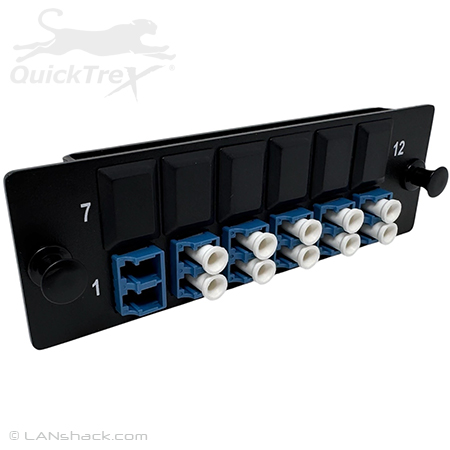

The QuickTreX® 12 Fiber LC UPC Singlemode 9/125 OS2 Ultra High Density (UHD) Adapter Panel is designed to maximize fiber connectivity in space-constrained environments. This panel seamlessly integrates into QuickTreX® UHD systems, including the 1U 4-panel Rack Mount UHD Fiber Optic Patch Panel and the UHD Wall/Surface Mount Chassis Bracket.
Note: This adapter panel is specifically designed for use with QuickTreX® Ultra High Density (UHD) enclosures and is not compatible with standard LGX or SHD fiber enclosures.
Pre-loaded with (6) LC UPC duplex singlemode couplers (blue), this panel supports up to 12 fibers in a compact footprint. Each duplex adapter allows for the connection of either LC duplex connectors or two simplex LC connectors, providing flexible deployment options for a wide range of applications. The plugs covering ports 7 through 12 can be removed and more non-flanged adatpers can be added later for future expansion.
The precision-aligned zirconia sleeves inside each coupler ensure accurate fiber alignment, delivering low insertion loss (≤0.25 dB typical for singlemode) and reliable signal integrity. These adapters are ideal for terminating backbone fiber assemblies and enabling clean, organized patching to active equipment such as SFP modules, switches, and media converters.
Constructed from heavy-gauge cold rolled steel, the adapter panel offers durability and long-term reliability in demanding data center, enterprise, and telecom environments.
Key Features:
- Supports up to 12 fibers via (6) LC duplex adapters
- Singlemode OS2 (9/125) with LC UPC polish (blue)
- Ultra High Density (UHD) design for maximum port utilization
- Precision zirconia sleeve for low insertion loss and high durability
- Compatible with QuickTreX® UHD rack mount and wall mount systems only
- Heavy-duty cold rolled steel construction
Specifications
Fiber Type
Singemode OS2 9/125
Chassis Type
UHD
Fiber Count
12
Color
Blue
Connector Type
LC
Body Type
Duplex
Polish Type
UPC
Insertion Loss
≤0.25dB
Mounting Type
Clipped (Non-Flanged)
Material
Plastic / Ceramic
Mechanical Durability
>500
Compliance
RoHS Compliant
