Our QuickTreX® opticalCON DUO® fiber optic assemblies harness the power of the ruggedized Neutrik® brand tactical connector with extreme tactical grade fiber to provide one of the most ruggedized fiber optic assemblies we have to offer. QuickTreX® Extreme Mil-Tac Deployable Pre-terminated Fiber Optic Assemblies are designed to withstand the most extreme conditions and include a double shielding of Kevlar and polyurethane. The cable used for these assemblies have been tested to withstand the most extreme conditions that may take place when in the field such as heavy vehicle traffic, severe blunt force, and sharp bends. This assembly is military approved, and is ideal for audio and broadcast networks.

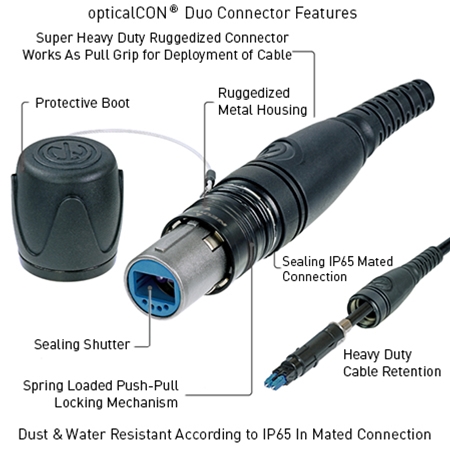

The opticalCON DUO cable connector houses a standard optical LC-Duplex connector in a ruggedized and durable all-metal housing. A spring-loaded push-pull locking mechanism provides superior protection for the connectors, and the fiber provides excellent cable retention utilizing aramid yarn. An automatically operated sealing cover protects the connectors from all contaminants like dirt and dust.

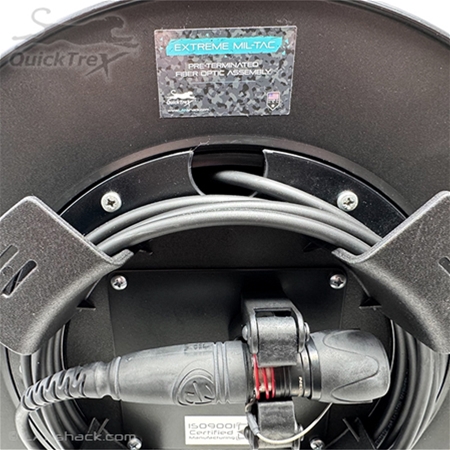

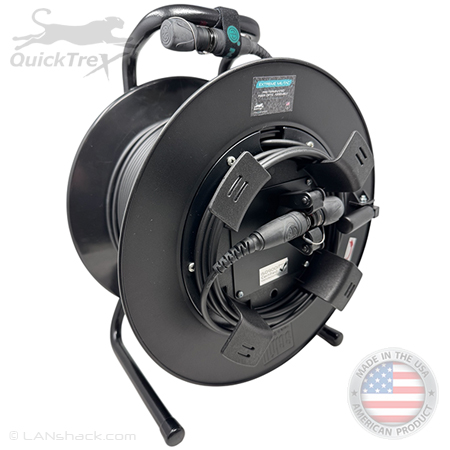

Our Mil-Tac Assemblies can optionally be installed on heavy duty Schill deployment reels and are designed for quick deployment and retrieval. These Schill reels include an auxiliary spool to store the which houses the connectors for safe and secure storage while not in use. This assembly is made in the USA by skilled technicians under controlled conditions, and comes to you fully tested and ready for immediate use. The test results are placed on the inside of the door or printed out if no reel is used.
Features
- Ultra Ruggedized Connector
- Contaminant protected fiber optic connection system
- Waterproof - IP65 safety standard in mated condition
- Accommodates standard optical LC-Duplex connectors
- Standard UPC Polish or APC (Angle Polish) options
- Cable connector features rugged all metal housing and heavy-duty cable retention
- Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket
- Reliable Push-Pull locking mechanism
- Easy to clean, no special tools required
- Tested to meet MIL-PRF-85045
- High impact and crush resistant - it can withstand a very heavy vehicle and high foot traffic
- Can withstand sharp bends and blunt force
- Performance in extreme temperature range

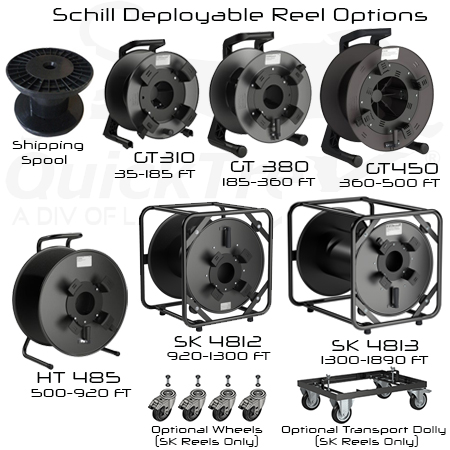

Schill Reels
This tactical fiber is commonly used for deployment situations where the fiber needs to be deployed fast and reeled back up when done. Therefore we recommend using one of the Schill Reel options for your tactical assembly. We have multiple options depending on the length of your assembly. Please choose the correct one per the length of your fiber because each reel is sized to hold a certain length. We also have a no reel option for shorter lengths, and a basic shipping spool for situations where a deployment reel isn't needed.
Specifications
Fiber Type
Singlemode 9/125
Strand Count
2
Fiber Core Size
9/125 - 9µm
Wavelength
1310/1550nm
Bandwidth
N/A

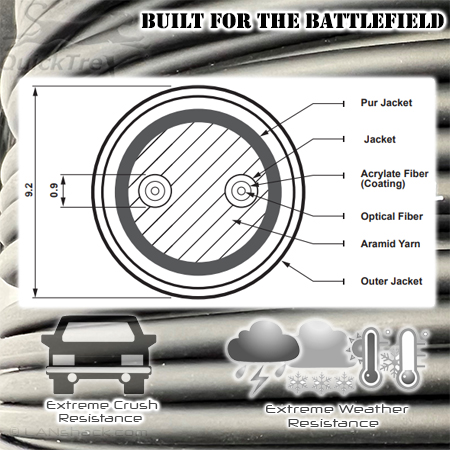

Jacket Material
Polyurethane
Jacket Rating
Extreme Mil-Tac (Double Jacketed)
Outer Jacket Color
Black
Strength Member
Aramid Yarn
Length Options
10 - 1890 ft
Testing
IL Max 0.5dB, Min -0.1dB ORL -55dB
Storage Temps
-55°C to +85°C
Operating Temps
-40°C to +70°C
Cable Diameter
9.2 mm
Weight
0.055 lbs. / ft
Min. Bend Radius / Installation
9.2 cm
Min. Bend Radius / Operation
13.8 cm
Max. Tensile Force
2200 N (short-term)
Application
Indoor/Outdoor
Resources
Mil-Tac opticalCON Assembly Build Specs
Cable Manufacture Specs: 2 Fiber Extreme Mil-Tac Cable Cutsheet
General: opticalCON Duo Cable Assembly Technical Info
General: OpticalCON Duo Handling Instructions
General: opticalCON Duo Technical Paper
General: Optional Deployable Reel Features & Specs
When You Place An Order
Step 01
Place Your Order
Team processes & forwards to one of our USA production departments.
Step 02
Get Notifications
Receive emails on order status & estimated ship date.
Step 03
Production & Testing
Manufactured in-house with strict quality control.
Step 04
Track Your Order
Get tracking on your shipment until delivery.
Product Reviews (257)
5
5
4
3
2
1
Vytas
First time I've ordered from LANshack, will definitely use them in the future for pre-terminated custom fiber assemblies. Shipped quick and direct to customer.
customer
great options
Michael
LANshack was great to deal with! The special order fiber came quick and everything looked correct.
Matthew
Everything was perfect for my order.
customer
LANshack really was accommodating and very helpful with my fiber needs. They went to every extent to make sure our network was up and running in no time!
Questions & Answers
Can these assemblies be deployed quickly in the field?
Yes. The push-pull locking mechanism and compatibility with heavy-duty Schill deployment reels allow for rapid setup, teardown, and transport, minimizing deployment time.
How is the cable stored and transported safely?
These assemblies can be mounted on Schill deployment reels, keeping cables organized, protected, and ready for rapid deployment in the field.
