2 Fiber Extreme Mil-Tac (Double Jacketed) Multimode OM3 50/125 Custom Deployable Fiber Optic Cable Assembly with Ruggedized Neutrik OpticalCON Duo Waterproof IP65 Rated Connectors - Made in the USA by QuickTreX®

Our QuickTrex opticalCON DUO® fiber optic assemblies harness the power of the ruggedized Neutrik® brand tactical connector with extreme tactical grade fiber to provide one of the most ruggedized fiber optic assemblies we have to offer. QuickTreX® Extreme Mil-Tac Deployable Pre-terminated Fiber Optic Assemblies are designed to withstand the most extreme conditions and include a double shielding of Kevlar and polyurethane.  The cable used for these assemblies have been tested to withstand the most extreme conditions that may take place when in the field such as heavy vehicle traffic, severe blunt force, and sharp bends.  This assembly is military approved, and is ideal for audio and broadcast networks.

The opticalCON DUO cable connector houses a standard optical LC-Duplex connector in a ruggedized and durable all-metal housing. A spring-loaded push-pull locking mechanism provides superior protection for the connectors, and the fiber provides excellent cable retention utilizing aramid yarn. An automatically operated sealing cover protects the connectors from all contaminants like dirt and dust.

Our Mil-Tac Assemblies can optionally be installed on heavy duty Schill deployment reels and are designed for quick deployment and retrieval. These Schill reels include a door which houses the back end connector for safe and secure storage while not in use. This assembly is made in the USA by skilled technicians under controlled conditions, and comes to you fully tested and ready for immediate use. The test results are placed on the inside of the door or printed out if no reel is used.

Features:

• Ultra Ruggedized Connectors
• Contaminant protected fiber optic connection system
• Waterproof - IP65 safety standard in mated condition
• Accommodates standard optical LC-Duplex connectors
• Cable connector features rugged all metal housing and heavy-duty cable retention
• Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket
• Reliable Push-Pull locking mechanism
• Easy to clean, no special tools required
• Tested to meet MIL-PRF-85045
• High impact and crush resistant - it can withstand a very heavy vehicle and high foot traffic
• Double shielded jacket consisting of polyurethane and Kevlar
• Can withstand sharp bends and blunt force
• Performance in extreme temperature range
• Quality made in the USA by Skilled Technicians

NOTE: Due to the fact that this is a custom made cable assembly, it is non-cancelable and non-returnable. Please choose your product description and specifications carefully.

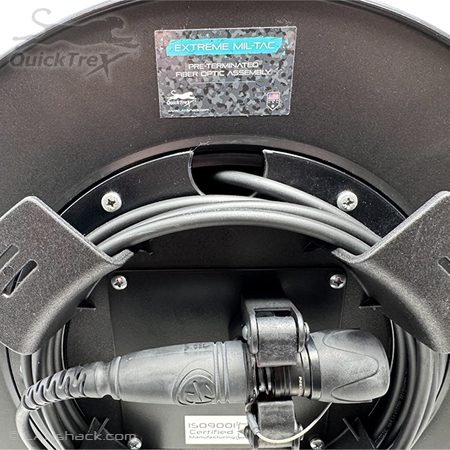

Schill Reels
This tactical fiber is commonly used for deployment situations where the fiber needs to be deployed fast and reeled back up when done. Therefore we recommend using one of the Schill Reel options for your tactical assembly. We have multiple options depending on the length of your assembly. Please choose the correct one per the length of your fiber because each reel is sized to hold a certain length. We also have a no reel option for shorter lengths, and a basic shipping spool for situations where a deployment reel isn't needed.

Lead time: Varies usually between 2 to 3 days. Call or email Sales at 888-568-1230 option 1 for a current estimated time.
