6 Panel Extra Heavy Duty Steel Outdoor Wall / Pole Mount Fiber Optic Enclosure with LGX Chassis, 3 x 12 Fiber Splice Trays, Splice Sleeves, and Locking Door with Key by QuickTreX®

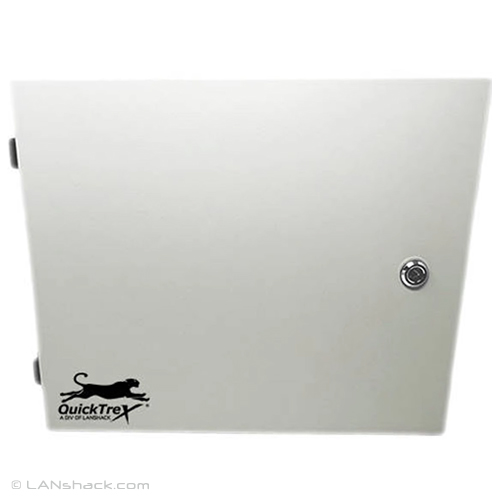

Our QuickTreX® Extra Heavy Duty 6 Panel Steel Outdoor Fiber Optic Enclosure with Wall / Pole Mount options, LGX Chassis, 3 x 12 Fiber Splice Trays, Splice Sleeves, and Locking Door with Key is perfect for interconnectivity and termination of optical fibers in outdoor harsh environment locations. It's made of heavy gauge special coated steel providing a superior UV and waterproof  protection of your fiber optic connectors and splices.  This enclosure is without a doubt the most crush resistance and durable box we offer.  It is compatible with all standard LGX adapter panels.  This 6 panel outdoor fiber optic enclosure includes wire management rings to easy spool your cable inside the box.  It also includes three removable 12 fiber splice trays so you can use it for splicing fiber pig tails or for pre-terminated fiber optic assemblies.  The enclosure includes an excellent sealing strip, rubber gromets, and cable glands to help seal out moisture and dust.  It also includes a lockable door and special grooved locking nut with key to help protect from anyone accessing the box.  This box is also great for indoor installations such as warehouses, factories, and heavy industrial settings where lots of dust and potential contamination takes place.

SPECIFICATIONS

Dimensions:                  18.31" W x 15.1" W x 4.33" D

Panels:                          6 LGX (See Dropdown for Available Panels)

Splice Tray:                   3 Removable 12 Fiber Splice Trays (Included)

Splice Sleeves:             36 Included

Fiber Capacity:             Up to 144 Fiber Connectors Depending on Connector Type

Material:                       Cold Rolled Steel with Static Spreading Plastic Coating

Color:                            Off-White

Wire Management:       8 Fiber Management Spools and 3 Cable/Hose Clamps

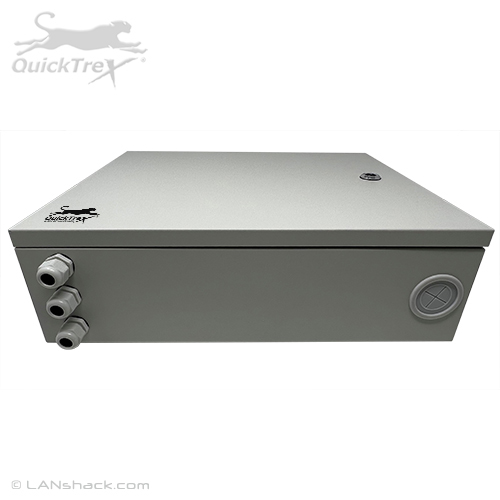

Cable Entry / Exit:         4 Total (3 x 7/8" Glanded or Grommet Options On Left Side) and (1 x 1.5" Grommeted)

Weight:                         14.4 lbs

INCLUDES

• (3) 7/8" Glanded Grommets
• (3) 7/8" Split Gromets
• (1) 1.5" Split Grommet
• (3) 12 Fiber Splice Trays
• 36 Splice Sleeves
• (3) Cable/Hose Clamps
• (8) Fiber Management Spools
• Mounting Screws w/ Anchors
• Special Door Key

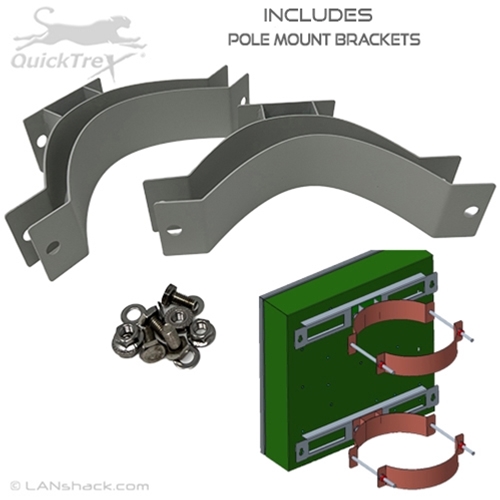

• (Optional) Heavy Duty Pole Mount Brackets

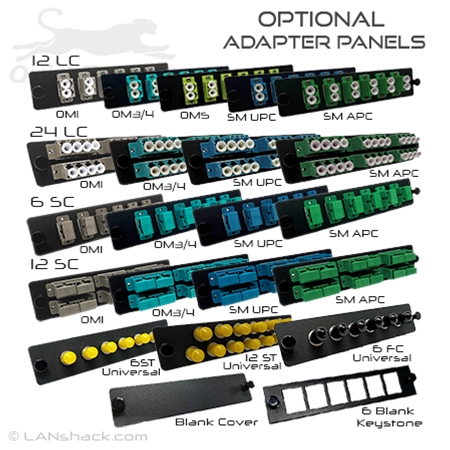

Our available LGX fiber optic adapter panels include:

Multimode OM1   62.5/125 (Beige)

• 12 LC
• 24 LC
• 6 SC
• 12 SC
• 6 ST
• 12 ST

Multimode OM2/3/4   50/125 (Aqua)

• 12 LC
• 24LC
• 6 SC
• 12 SC
• 6 ST
• 12 ST

Multimode OM5   50/125 (Lime Green)

• 12 LC

Singlemode 9/125 (Blue UPC Polish)

• 12 LC UPC
• 24 LC UPC
• 6 SC UPC
• 12 SC UPC

Singlemode 9/125 (Green APC Polish)

• 12 LC APC
• 24 LC APC
• 6 SC APC
• 12 SC APC

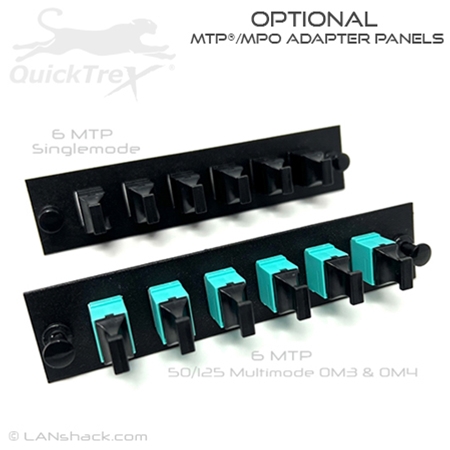

MTP 12/24 Fiber

• 6 MTP Mutlimode 50/125 OM3/4 (Aqua)
• 6 MTP APC Singlemode (Green)

Availability: In Stock.  Ships within 24 Business Hours.
