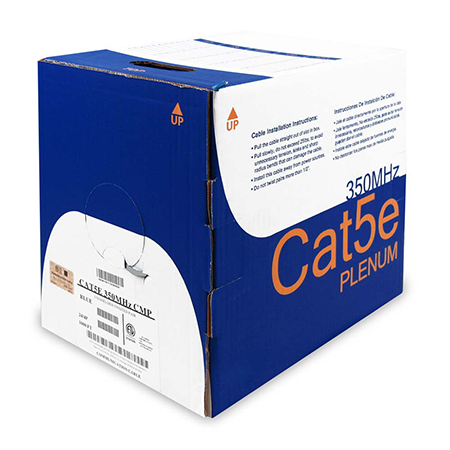

Cat 5e Unshielded Bulk Cable

Cat 5E Unshielded (UTP) Solid Conductor 24 AWG 350MHz CMP Plenum Ethernet Cable 1000 Ft

SKU:LSBL-BEC-C5E-UTP-I-24A-STR-1000

  • • Indoor Rated
$293.00
Icon
8 Unit(s) available
Blue 2
Black 2
Gray 1
White 2
Orange 1
At a Glance
  • Plenum Rated
  • High Performance Cable
Icon
estimated lead time
Estimated Lead Time
Typically Ships Within 24-48 Business Hours
(Cut off time is 2 PM EST)
Icon
expected receive dates
Receive Between
June 5-15, 2026
RoHs Compliant
TIA Compliant
UL Listed
ETL Listed

Add Related Products

Professional-grade Cat5e plenum cable featuring solid bare copper conductors for permanent installations and superior network performance. Built to exceed ANSI/TIA-568-C.2 and ISO/IEC 11801 standards, this cable delivers reliable connectivity for demanding commercial environments with strict fire safety requirements.

Key Features:

  • 24AWG solid annealed bare copper conductors
  • Unshielded Twisted Pair (UTP) design
  • Plenum-rated flame retardant PVC jacket
  • RoHS compliant construction
  • UL Listed Type CMP for air handling spaces
  • C(UL) Listed FT6 fire rating
  • 100Ω characteristic impedance
  • 1000ft bulk cable spool

Performance Specifications:

  • Supports 1000BASE-T Gigabit Ethernet
  • Compatible with 10BASE-T, 100BASE-TX, 100BASE-VG
  • 350MHz bandwidth capability
  • ATM 155 Mbps and 16 Mbps Token Ring support
  • Operating temperature: -20°C to +75°C
  • Installation temperature: 0°C to +60°C
  • Maximum conductor resistance: 9.38Ω/100m at 20°C

Applications:

  • Commercial building backbone installations
  • Air handling space (plenum) routing
  • Hospital and healthcare facility networks
  • Educational institution cabling systems
  • Government and municipal building networks
  • High-rise office building installations

Ideal for network contractors, system integrators, and facility managers requiring code-compliant cable for permanent installations in commercial buildings where plenum fire ratings are mandatory.

Resources

PDF Document
General: LSBL-BEC-C5E-UTP-I-24A-STR-1000 Datasheet
