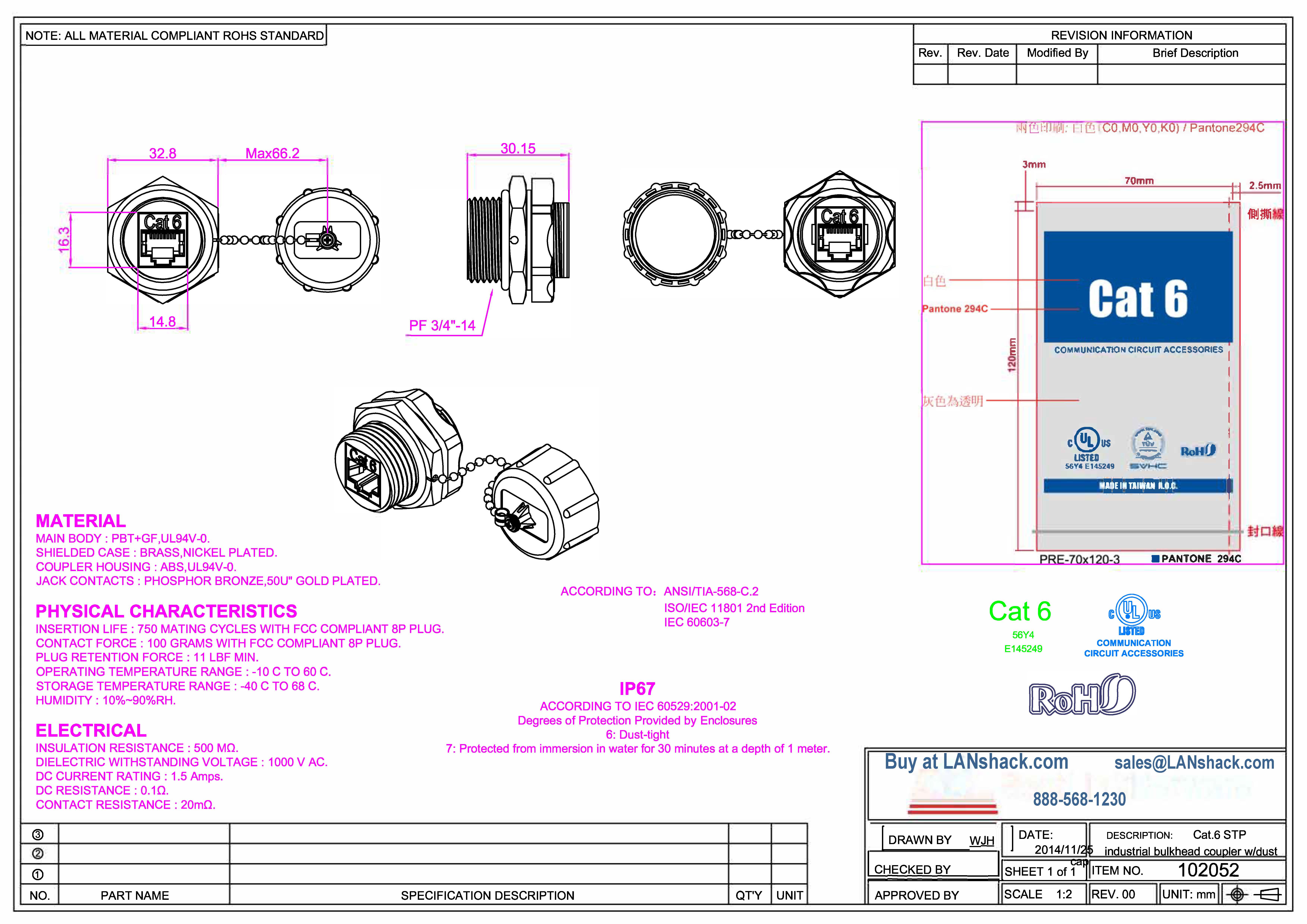

This Cat 6 Commercial-Grade Outdoor Shielded Bulkhead Panel Mount Coupler with Dust Cap is specifically designed for use with our Cat 6 commercial-grade outdoor patch cables. It allows for a water-resistant and dust proof coupling and is perfect for commercial and outdoor environments where your Ethernet cables are susceptible to water, grease, dust, and other contaminants. The coupler is has both a female connection on both sides of coupler and is designed for standard male RJ-45 8Pin modular plus. The coupler is designed to fit into any standard bulkhead mount. This coupler comes with a dust cap that allows the coupler to be protected from dust, debris, and water while not in use.
They are great for factories, warehouses, machine shops, arenas, conference halls, outdoor arenas, and anywhere else your network cabling may get wet or contaminants on them. The shielding allows for increased signal isolation to prevent outside interference. They are truly rugged and manufactured to weather tough conditions.
Features:
50 Micron Gold Plated Contact Pins
UL/cUL Listed
RoHS Compliant
Insertion Life: 750 Mating Cycles with FCC Compliant 8P Plug
Contact Force: 100 Grams with FCC Compliant 8P Plug
Plug Retention Force: 11 LBF Min
Operating Temperature Range: 14°F to 140°F
Dialectic Withstanding Voltage: 1000V
Contact Resistance: 2.5Ω Min
Insulation Resistance: 500MΩ Min
DC Current Rating 1.5 Amps
DC Resistance: 0.1Ω
Water-Resistant
IP67 : Protected from Immersion in water for 30 minutes at a depth of 1 meter
