Cat 6A Unshielded Bulk Cable

Cat6A Plus 10GIG 7000MHz Unshielded (UTP) Solid Conductor 23AWG Riser Rated (CMR), FT4, and Sunlight Resistant SySPEED Ethernet Cable 1000 Ft by Syston

SKU:1476-PB-1000

$311.55
Icon
21 Unit(s) available
Blue 0
White 21
Icon
estimated lead time
Estimated Lead Time
Typically Ships Within 24 Business Hours
(Cut off time is 2 PM EST)
Icon
expected receive dates
Receive Between
June 5-12, 2026

Add Related Products

Cat 6A+ is an augmented specification of Cat 6A.

The Cat 6A+ cable was designed to offer a higher transmission frequency from the 500MHz by Cat 6A to 700MHz bandwidth. The extra bandwidth doubles the effective distance at which the cable can maintain 10 Gbps. Cat 6A+ has tighter twists, with additional insulation to reduce crosstalk.  Because of their reliability and high speed, they are the most popular choice of gamers, noobs, and pros alike. Now, ethernet cables come in a myriad of types, but Cat6a is the go-to cable for gamers.

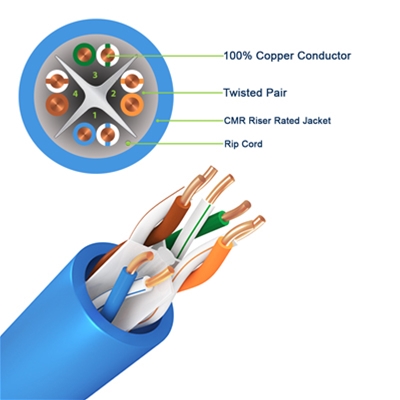

Cable Features

  • Cable Description: Premium Cat 6A+ Ethernet Cable
  • Conductor: 23 AWG solid bare annealed copper
  • Insulation: Premium polyolefin
  • Pair 1: Blue – White/Blue               Pair 2: Orange – White/Orange
    Pair 3: Green – White/Green        Pair 4: Brown – White/Brown
  • Spline: Premium polyolefin
  • RipCord: Applied longitudinally under the jacket
  • Jacket: Premium PVC (flame-retardant, sun-resistant & RoHS compliant)
  • Nominal Cable Diameter: 0.245″
  • Temperature Rating:  Installation: +32 F to + 140 F / Storage & Operation: -4 F to + 167 F
  • Lengths available: 1000 ft
  • Color options: Blue, white
  • Custom cable constructions, lengths, colors, and packaging are available.
  • Recommended RJ45 Connector: Platinum Tools # ezEX48

Our premium enhanced Cat 6A+ Ethernet Cable strengths:

  • Capable of exceeding 10 Gigabit Ethernet for super-fast and reliable data transfers
  • Includes a noise-reducing spline, so there’s no ‘cross talk’ (interference from nearby wires)
  • Flexible and easy to strip, so you or your customers can easily install it, even around tight corners
  • RhinoPac® packaging solution, designed to provide smooth pulling during installation while providing reliable protection against crushing and water damage during transport or storage
  • A ripcord underneath the jacket, to make it easy to remove during installation
  • Third-party verified for guaranteed performance, so it will stand up to your needs or those of your customers
  • RoHS compliant, so you can rest easy knowing it doesn’t contain hazardous substances that could harm you, your employees, or your customers (more information about this is in our Green Leaf Label)
  • Legend markings for channels, rooms, and zones so installation is faster and easier
  • Ascending and descending E-Z footage markings, so there’s no need for a measuring tape during installation
  • Sunlight-resistant (it complies with the UL 1581 standard in regard to resistance to sunlight in outdoor installations), so it can be installed outdoors if desired
  • CMR (Riser-Rated) flame-retardant jacket, for peace of mind in case of fire
  • Operates in a wide range of temperatures, so it can be installed in any area in any part of North America
  • Versatile applications including transferring up to 1 gigabit of data per second (gigabit Ethernet), analog signals, and high definition video signals, making it suitable for use in a variety of applications including data centers, super high-speed applications, home networks, routers, office networks, gaming (Xbox, POE, PS3, and PS4), IP cameras, CCTV cameras, and AES51, RS-422, IEEE 802.af (PoE), IEEE 802.3bt (PoE+), IEEE 802.3bt (POE++)
  •

Specifications

Category Type
CAT 6A
Shielding
Unshielded Twisted Pair (UTP)
Number of Pairs
4
Jacket Rating
Riser Rated
Conductor Size
23 AWG
Conductor Type
Solid
Conductor Material
Bare Annealed Copper
Insulation
Premium Polyolefin
Spline
Premium Polyolefin
Rip Cord
Applied Longitudinally Under Jacket
Jacket
Premium PVC
Nominal Cable Diameter
0.245 in
Installation Temperatures
0°C to 60°C
Storage Temperatures
-20°C to +75°C
Operating Temperatures
-20°C to +75°C
Max. Operating Voltage
300V
Max. Capacitance
5.6 (nF/100m @ 1kHz)
Max. DC Resistance
9.38 (Ω /100m @ 68°F)
Max. Delay Skew
45 (ns/100m)
Nom. Velocity of Propagation
69%
Characteristic Impedance
100 ± 15 (Ω @ 1-100MHZ)

Resources

PDF Document
General: Cable Manufacture Specifications
