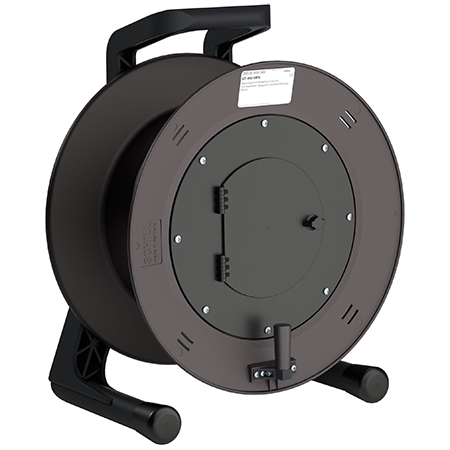

This Schill GT 450 Cable Reel is perfect for deploying and retrieving a variety of cable such as fiber optic, Ethernet, and power. This cable reel includes a two hinge latching door, grommeted hole with clamp in the core for unterminated cable that you terminate once installed on the reel, and a second 60mm hole for installing a preconnectorized cable assembly onto the reel. The core so is great for storing the back end of the assembly inside the reel. Schill cable reels are well known in the industry for their premium quality. They are made in Germany and built to last the most rugged conditions.
SPECIFICATIONS
- Material: Special Rubber
- Height: 17.52 Inches
- Core Diameter: 11.61 Inches
- Width: 6.97 Inches
- Core Holes: 1 x Grommeted Hole / 1 x 60mm Hole
- Includes 2 Hinge Latching Door
- Product Line: Professional GT Series
Specifications
1 mm Cable OD Capacity
12,344.58 m (40,502.55 ft)
2 mm Cable OD Capacity
3,086.14 m (10,125.64 ft)
3 mm Cable OD Capacity
1,371.62 m (4,500.27 ft)
4 mm Cable OD Capacity
771.54 m (2,531.41 ft)
5 mm Cable OD Capacity
493.78 m (1,620.11 ft)
6 mm Cable OD Capacity
342.90 m (1,125.07 ft)
7 mm Cable OD Capacity
251.93 m (826.58 ft)
8 mm Cable OD Capacity
192.88 m (632.84 ft)
9 mm Cable OD Capacity
152.40 m (500.02 ft)
10 mm Cable OD Capacity
123.45 m (405.03 ft)
11 mm Cable OD Capacity
102.02 m (334.74 ft)
12 mm Cable OD Capacity
85.73 m (281.27 ft)
13 mm Cable OD Capacity
73.05 m (239.67 ft)
14 mm Cable OD Capacity
62.98 m (206.65 ft)
15 mm Cable OD Capacity
54.86 m (180.01 ft)
16 mm Cable OD Capacity
48.22 m (158.22 ft)
17 mm Cable OD Capacity
42.71 m (140.14 ft)
18 mm Cable OD Capacity
38.10 m (125.02 ft)
19 mm Cable OD Capacity
34.19 m (112.18 ft)
20 mm Cable OD Capacity
30.86 m (101.26 ft)
21 mm Cable OD Capacity
27.99 m (91.84 ft)
22 mm Cable OD Capacity
25.50 m (83.68 ft)
23 mm Cable OD Capacity
23.34 m (76.57 ft)
24 mm Cable OD Capacity
21.43 m (70.32 ft)
25 mm Cable OD Capacity
19.75 m (64.81 ft)
26 mm Cable OD Capacity
18.26 m (59.92 ft)
27 mm Cable OD Capacity
16.94 m (55.57 ft)
28 mm Cable OD Capacity
15.74 m (51.66 ft)
29 mm Cable OD Capacity
14.68 m (48.17 ft)
30 mm Cable OD Capacity
13.72 m (45.02 ft)
