Premium 14/2 AWG Plenum Rated Indoor/Outdoor Fire Alarm Cable - RED 1000FT - EZ-Pull Box - Solid Copper Conductors, FPLP, CL3P, FT6 by Syston

SKU:6063-RB-RD-1000

  • • Plenum Rated
  • • Indoor/Outdoor
  • • Fire Alarm Cable
$395.25
Icon
0 Unit(s) available
At a Glance

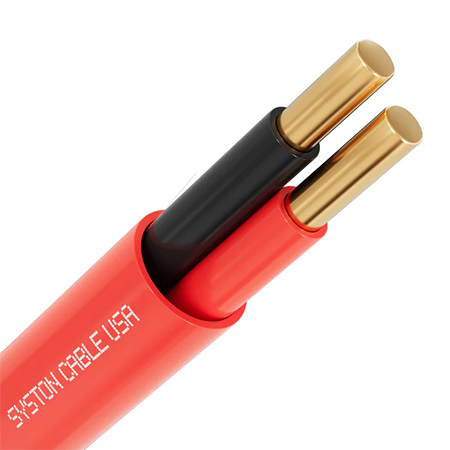

  • Two solid copper conductors for reliable signal transfer
  • EZ-Pull box reduces snags and speeds installation
  • Bright red jacket for clear circuit identification
  • Ideal for fire alarm, security, and control systems
RoHs Compliant
ISO 9001
CE Mark
UL Listed
ETL Listed

Add Related Products

About this product:

  • Multiple Applications: Fire Protective Signaling Circuits, Smoke Detectors, Strobes/Sirens, Pull Stations, Voice Communications, Burglar Alarms, Audio, Control, Initiating & Notification Circuits, Microprocessor/Addressable Controlled Systems.
  • Pure Copper Conductors: Our fire alarm wire is built with solid bare copper conductors, providing maximum conductivity and reliability to ensure that your systems run smoothly.

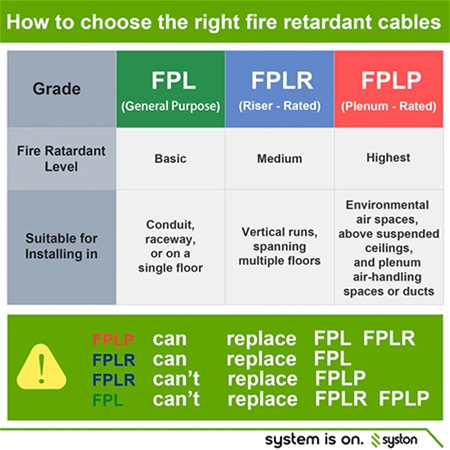

  • FPLP (Plenum-Rated): Our cable is designed with your safety in mind. It has the flame retardant grade of FPLP/CMP/CL3P/FT6/Plenum-Rated and is the highest flame retardant cable. This cable suited to go in the plenum spaces of buildings such as ceilings and enclosures, that are also used by the building for air distribution systems to transport air. CMP is higher than commercial grade cable CMR and civil grade cable CM.
  • 300V (CL3) Power-Limited Circuit Cable: Our cable is rated at 300 volts and classified as a Class-3 (CL3) Power-Limited Circuit Cable, capable of carrying a surge of up to 300 watts. This makes it a reliable choice that reduces risk of electrical shock for even the most demanding application.
  • Installation-Friendly Design: With its round, slick jacket and smooth edges, our cable is easy to pull through rough corners and edges. The jacket also features a rip cord for effortless removal during installation.

Features

  • Flexible and easy to strip, so you or your customers can easily install it, even around tight corners
  • RhinoPac® packaging solution, designed to provide smooth pulling during installation while providing reliable protection against crushing and water damage during transport or storage
  • A rip cord underneath the jacket, to make it easy to remove during installation
  • Legend markings for channels, rooms and zones so installation is faster and easier
  • Ascending and descending E-Z footage markings, so there’s no need for a measuring tape during installation
  • FPLP (Plenum Rated) flame-retardant jacket, for piece of mind in case of fire
  • RoHS compliant, so you can rest easy knowing it doesn’t contain hazardous substances that could harm you, your employees or your customers (more information about this is in our Green Leaf Label)
  • Third-party verified for guaranteed performance, so it will stand up to your needs or those of your customers
  • Operates in a wide range of temperatures, so it can be installed in any area in any part of North America
  • This cable has a thick insulation and is rated to 300-Volt and is classified as a Class-3 (CL3) Power-Limited Circuit Cable. (CL3 cables can carry a surge of up to 300 watts, while CL2 can only carry a surge of up to 150 watts. A CL3-rated cable can take the place of any CL2, however, a CL2 cannot take the place of a CL3)
  • Versatile applications including all fire protective signaling circuits (including circuits that contain one or more smoke detectors, strobes, sirens, pull stations and voice communications), burglar alarms, audio, control, initiating and notification circuits, and microprocessor or addressable-controlled systems

Standard Compliances

  • NEC: 725 & 760
  • UL Standard: UL 13 & UL 1424
  • Flame Rating: NFPA 262 (Plenum); CSA C22.2 No. 2556 (FT6)
  • California State Fire Marshal
  • ASTM B-3 & B-8
  • RoHS 3 (EU 2015/863)
  • ISO 9001: 2015
  • ISO 14001: 2015
  • OHSAS 18001

NOTE: Above ground installation only when installed outdoors.

Specifications

Conductor
Solid Bare Copper
Number of Conductors
2 (Twisted)
Conductor Size
14 AWG
Cable Length
1000 ft
Insulation
Plenum PVC
Rip Cord
Applied Longitudinally Under Jacket
Jacket
Plenum PVC
Color
Red
Nominal Cable Diameter
0.206 in
Installation Temperatures
0°C to +60°C
Storage Temperatures
-20°C to +75°C
Operating Temperatures
-20°C to +75°C
Nom. Capacitance
24.1 pF/ft
Max. DC Resistance
2.57 Ω/m @ 20°C
Nom. Characteristic Impedance
63 Ω
Max. Operating Voltage
300 V
