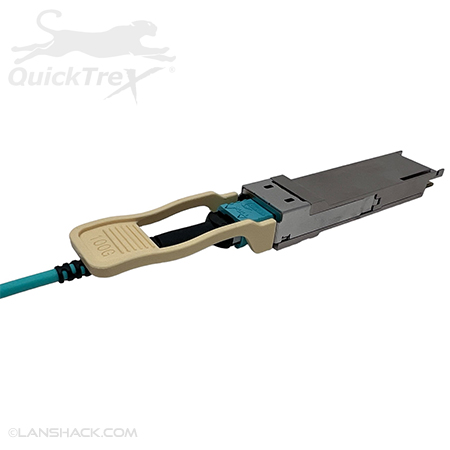

QuickTreX® Customizable Compatibility 100 Gigabit Multimode OM3/4 850nm 70/100m DOM 12 Fiber MPO/MTP QSFP28 Fiber Optic Transceiver Module - 100BASE-SR4 - 4 x 25G-SR - Hot Pluggable, RoHS, and TAA Compliant

This QuickTeX® QSFP28 transceiver is a quad small form-factor pluggable module for serial optical data communications such as IEEE 802.3bm 100GBASE-SR4. It is with the QSFP28 38-pin connector to allow hot plug capability. The internally ac coupled high speed serial I/O simplifies interfacing to external circuitry. A serial EEPROM in the transceiver allows the user to access transceiver digital diagnostic monitoring and configuration data via the 2-wire QSFP28 Management Interface.

Transmitter Section
The transmitter section uses four Vertical Cavity Surface Emitted Lasers (VCSEL).In addition, this component is also class 1 laser that compliant with International Safety Standard IEC-60825-1:2014. It complies with EN60825-1:2014/A11:2021 and FDA 21 CFR 1040.10 and 1040.11

Receiver Section
The receiver incorporates four GaAs PIN photodiodes integrated with four trans-impedance preamplifiers (TIA) and four limiting post-amplifier ICs.

FEATURES

• Single +3.3V Power Supply
• Compliant with SFF-8636, QSFP28 MSA
• Compliant with IEEE 802.3bm 100GBASE-SR4
• Hot Pluggable Electrical Interface
• Up to 70m with OM3 MMF
• Up to 100m with OM4 MMF
• Class 1 Laser International Safety Standard IEC-60825-1:2014 Compliant. Complies with EN60825-1:2014/A11:2021 and FDA 21 CFR 1040.10 and 1040.11
• Commercial Operation Temperature: 0 °C to +70 °C
• MPO male optical connector (Requires a Female MPO/MTP Connector with Method B Polarity)
• RoHS, REACH, TAA, and NDAA Compliant
• UL Listed, and CE and FCC Certified
• IS09001 Certified Manufacturing
