40 Gigabit QSFP+ Transceivers

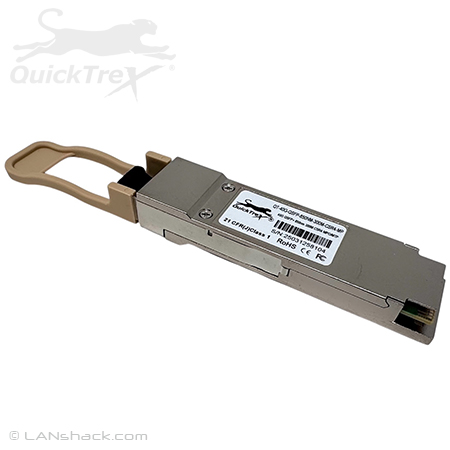

QuickTreX® 40 Gigabit Multimode MTP/MPO QSFP+ Fiber Optic Transceiver - Hot Pluggable and Cisco Compatible - 300m w/OM3 / 400m w/OM4 at 850 nm - 40BASE-CSR4

SKU:QT-40G-QSFP-850NM-300M-CSR4-MP

5.0/5 (19 Reviews)
$99.85
Icon
10 Unit(s) available
Icon
estimated lead time
Estimated Lead Time
Typically Ships Within 24 Business Hours
(Cut off time is 2 PM EST)
Icon
expected receive dates
Receive Between
June 5-12, 2026

Add Related Products

The QT-40G-QSFP-850NM-300M-CSR4-MP is a parallel 40Gbps Quad Small Form-factor Pluggable (QSFP) optical module that provides increased port density and total system cost savings.  The QSFP is full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gbps operation for an aggregate bandwidth of 40Gbps 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF.

An optical fiber ribbon cable with an MPO/MTP connector at each end plugs into the QSFP module receptacle. The orientation of the ribbon cable is “keyed” and guide pins are present inside the module’s receptacle to ensure proper alignment. The cable usually has no twist (key up to key up) to ensure proper channel to channel alignment. Electrical connection is achieved though a z-pluggable 38-pin IPASS® connector.

The module operates from a single +3.3V power supply and LVCMOS/LVTTL global control signals such as Module Present, Reset, Interrupt and Low Power Mode are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals and to obtain digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.

The QT-40G-QSFP-850NM-300M-CSR4-MP is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.

FEATURES

  • 4 independent full-duplex channels
  • Up to 11.2Gbps per channel bandwidth
  • Aggregate bandwidth of > 40Gbps
  • MTP/MPO Male optical connector (Requires a Female MPO/MTP Connector with Method B Polarity)
  • QSFP MSA compliant
  • Digital diagnostic capabilities
  • Capable of over 300m transmission on OM3 MMF (Multimode Fiber) and 400m on OM4 MMF
  • CML compatible electrical I/O
  • Single +3.3V power supply operating
  • TX input and RX output CDR retiming
  • Built-in digital diagnostic functions
  • Temperature range 0°C to 70°C
  • Silver with Beige Tab
  • RoHS Compliant Part

Applications:

  • Rack to rack
  • Data centers
  • Metro networks
  • Switches and Routers
  • Infiniband 4x SDR, DDR, QDR
