QuickTreX® Customizable Compatibility 400 Gigabit Singlemode OS2 1310nm 2km DDM/DOM Duplex LC QSFP-DD PAM4 Fiber Optic Transceiver Module - 400BASE-RF4 - CWDM - Hot Pluggable, RoHS, and TAA Compliant

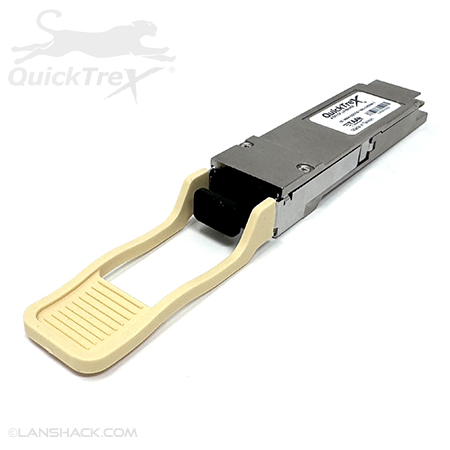

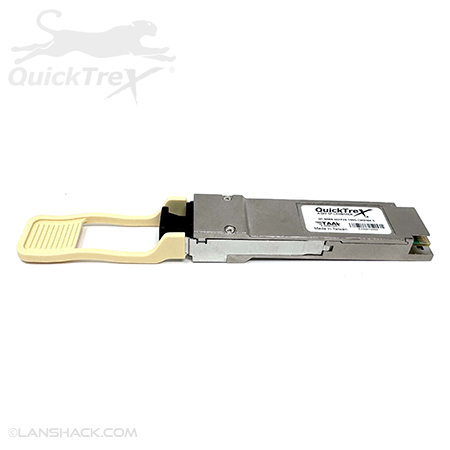

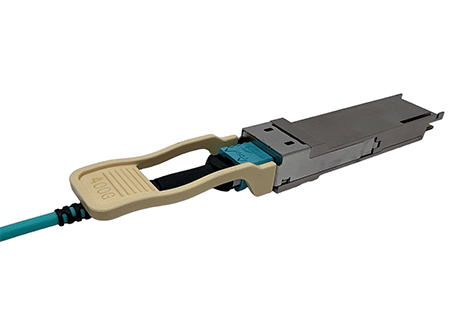

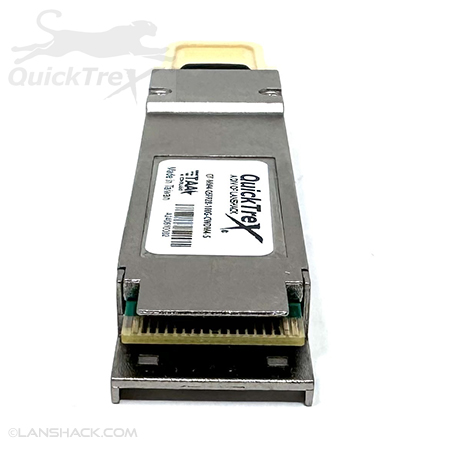

This transceiver from QuickTreX® is quad small form-factor pluggable module for serial optical data communications such as IEEE 802.3cu 400GBASE-FR4. It is with the QSFP-DD 38-pin connector to allow hot plug capability. The internally ac coupled high speed serial I/O simplifies interfacing to external circuitry. A serial EEPROM in the transceiver allows the user to access transceiver digital diagnostic monitoring and configuration data via the 2-wire QSFP-DD Management Interface.

Transmitter Section
The transmitter consists of directly modulated uncooled CWDM 4 wavelength 1271, 1291, 1311, and 1331 nm EML lasers and drivers. In addition, this component is also class 1 laser that compliant with International Safety Standard IEC-60825-1:2014. It complies with EN60825-1:2014/A11:2021 and FDA 21 CFR 1040.10 and 1040.11

Receiver Section
The receiver incorporates InGaAs PIN photodiodes integrated with trans-impedance preamplifiers (TIA) and limiting post-amplifier ICs.

FEATURES

• Single +3.3V Power Supply
• Lane Bit Rate 106.25 Gb/s with PAM4
• CWDM4(1271/1291/1311/1331nm) EML laser and PIN receiver
• Up to 2km on SMF
• 8 x53.125Gb/s with PAM4 electrical interface (400GAUI-8)
• Compliant to IEEE 802.3cu & QSFP-DD MSA
• Class 1 Laser International Safety Standard IEC-60825-1:2014 Compliant. Complies with EN60825-1:2014/A11:2021 and FDA 21 CFR 1040.10 nd 1040.11
• Up to 25.78Gb/s data rate each wavelength
• Commercial Operation Temperature: 0 °C to +70 °C
• RoHS, REACH, TAA, and NDAA Compliant
• UL Listed, and CE and FCC Certified
• IS09001 Certified Manufacturing
