Singlemode Fiber Optic Couplers

QuickTreX® Premium Singlemode SC APC Duplex Outdoor Harsh Environment Waterproof IP68 Rated and High Performance PA66 Thermoplastic In-Line Fiber Optic Coupler - Compatible w/ 2 x 1.5 - 4.5 mm Cable OD

SKU:QT-OHE-IP68-INLFOC-SM-DSC-APC

$9.98
Icon
453 Unit(s) available
Icon
estimated lead time
Estimated Lead Time
Typically Ships Within 24 Business Hours
(Cut off time is 2 PM EST)
Icon
expected receive dates
Receive Between
June 5-12, 2026
RoHs Compliant
CE Mark
Quality Control
Plug & Play
IP68 Rated

Add Related Products

QuickTreX® Premium Singlemode SC APC Duplex Outdoor Harsh Environment Waterproof IP68 PA66 Rated In-Line Fiber Optic Coupler

The QuickTreX® Premium Singlemode SC APC Duplex In-Line Fiber Optic Coupler is purpose-built for rugged outdoor and industrial fiber networks that demand durability, precision, and environmental protection. Engineered with a high-strength PA66 housing and certified to IP68 standards, this coupler delivers reliable, waterproof, and dustproof performance even in the harshest conditions.

Designed for Singlemode SC APC duplex connections, the coupler features angled physical contact (APC) connectors for exceptionally low return loss, making it ideal for high-bandwidth, long-distance, and noise-sensitive optical applications. Whether deployed in permanent outdoor systems or temporary field installations, this coupler ensures secure, low-loss connectivity without tools or splicing.

Key Features:

  • IP68 Waterproof & Dustproof Rated
    Fully sealed for submersion, extreme weather, and contamination—perfect for mission-critical outdoor installations.

  • SC APC Duplex Compatibility
    Supports Singlemode SC APC duplex connectors with precision alignment sleeves for optimal signal integrity.

  • PA66 Industrial-Grade Housing
    Rugged, UV-resistant, and chemically stable for long-term outdoor durability in tough environments.

  • Tool-Free Inline Coupling
    Allows quick and secure mating of fiber links in the field—no need for splicing, heat, or adhesives.

  • Low Insertion Loss / High Return Loss
    Maintains performance in high-speed optical networks where clean, stable signals are essential.

  • Reusable and Field Deployable
    Ideal for security systems, FTTX, industrial automation, utility networks, and remote communications infrastructure.

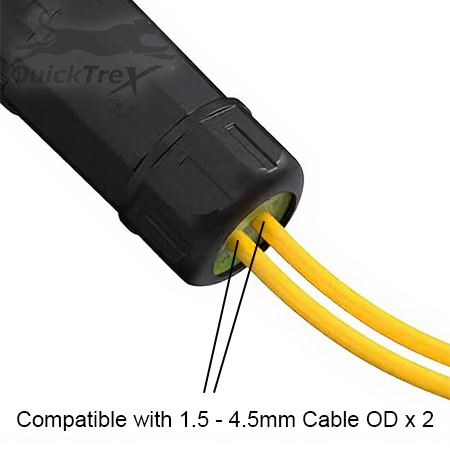

  • Compatible with Outer Cable Diamter of 1.5mm to 4.5mm X 2

Recommended For:

  • Harsh outdoor telecom and data networks

  • SC APC-based FTTH / FTTX installations

  • Remote monitoring and surveillance systems

  • Military, oil & gas, or transportation infrastructure

  • Temporary emergency fiber deployments

With the QuickTreX® Premium SC APC Duplex IP68 Coupler, you get a dependable, field-ready fiber solution that stands up to the toughest environments—ensuring your network stays connected when it matters most.

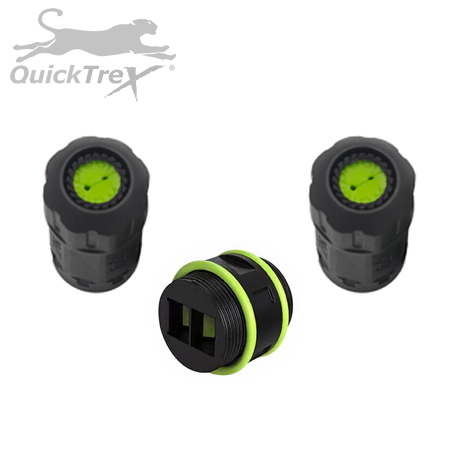

Includes

  • 2 End Covers,
  • 2 Long Tubes,
  • 1 RJ45 Shielded Coupler
  • 2 Rubber O Rings
  • 2 Water-proof sealing plugs

Specifications

Coupling Type
SC UPC Duplex
Fiber Type
Singlemode 9/125
Insertion Loss
≤0.25dB
Fiber Coupler Material
Plastic / Ceramic
IP Rating
IP68
Maximum Water Depth
10 meters for up to 1 year
Thread Type
M20
Operating Temperature
-40°C to +85°C
Shell Material
Nylon PA66
O Ring Material
Rubber / Silicone
Color
Black
Compatible Cable OD
2 X 1.5 - 4.5 mm

Resources

PDF Document
General: QT-OHE-IP68-INLFOC-SM-DSC-APC Datasheet
Asset

Help Article
Fiber Optic Definitions
Helpful

Help Article
Pre-Terminated Fiber Optic Assemblies Guide
Helpful

Videos

When You Place An Order

Step 01
Step 01
Place Your Order
Our team processes your order within 24 business hours.
Step 02
Step 02
Get Notifications
You receive emails about your order status.
Step 04
Step 03
Track Your Order
Get tracking on your shipment until delivery.
You can be the first one to write a review.

Questions & Answers

Q
What does UHD stand for?
A
UHD stands for "Ultra High Density" and provides the most compact connector layout or footprint on the adapter panel. UHD enclosures or panels can only accept UHD adpater panels or cassettes.
Q
What does SHD chassis mean?
A
SHD stands for "Super High Density" and provides a more compact connector layout or footprint on the adapter panel. SHD chassis enclosures can only accept SHD adapter panels or MTP/MPO cassettes.
Q
How many fiber strands can fit into a fiber optic enclosure?
A
The amount of fiber strands that you can fit into an enclosure will depend on how many panels or adapters you can fit and what type of connectors you choose. For example, if you choose a 1 panel enclosure and use a 12LC adapter panel, you can house or couple 12 fibers in that enclosure. If you use 12 MTP/MPO adapter panel, you can house or couple 144 or 288 strands depending on whether the MTP or MPO connector being connected is a 12 or 24 fiber connector.
Q
What does LGX stand for?
A
LGX stands for Lucent Connector Group and is often called Lucent Global X. It was originally Lucent Technologies standard for fiber optic adapter plates and enclosures but over time it became industry standard.
Q
What are the different types of chassis in fiber optic enclsoures?
A
The three main chassis are LGX, SHD, and UHD. LGX is the most common and standardized chassis type.
