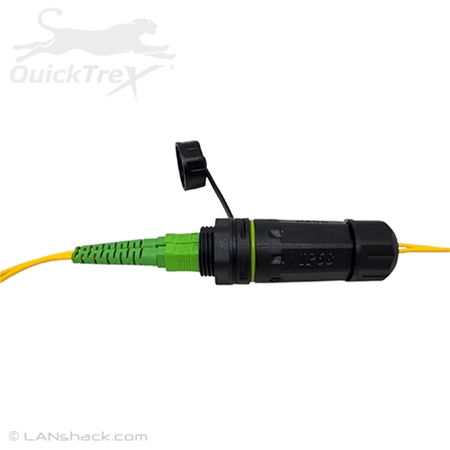

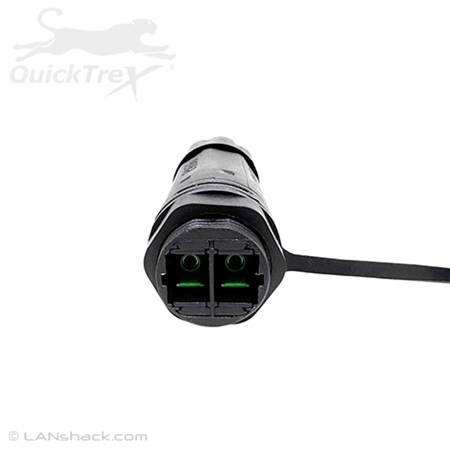

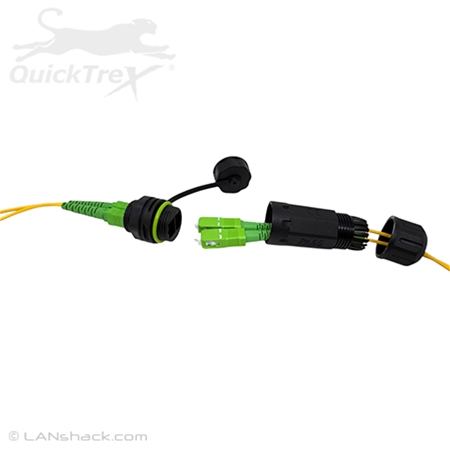

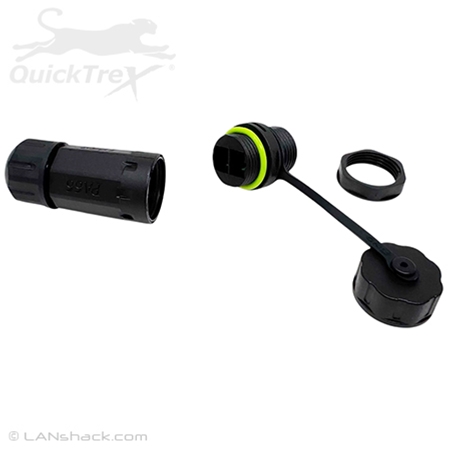

The QuickTreX® Premium Singlemode SC APC Outdoor Panel-Mount Bulkhead Fiber Optic Coupler is engineered for reliable fiber connectivity in harsh outdoor and industrial environments. Built with a high-performance PA66 thermoplastic housing, it offers excellent mechanical strength, chemical resistance, and long-term durability under demanding conditions.
Rated IP68 waterproof and dustproof, this bulkhead coupler provides a secure, sealed fiber pass-through solution for outdoor enclosures, cabinets, and network equipment exposed to moisture, dust, and temperature extremes. The panel-mount bulkhead design supports LC, SC, or MTP/MPO fiber optic interfaces, delivering flexible compatibility across a wide range of fiber deployments.
Optimized for singlemode SC APC applications, the coupler supports duplex cable configurations and accommodates two cables with outer diameters from 1.5 to 4.5 mm. An integrated protective dust cap with lanyard safeguards the connector when not in use, helping preserve optical performance and extend service life in the field.
Ideal for telecommunications, FTTH, outdoor networking, and industrial infrastructure, the QuickTreX® coupler ensures dependable performance where environmental protection and signal integrity are critical.
Key Features
-
IP68-rated waterproof and dustproof for harsh outdoor environments
-
High-performance PA66 thermoplastic construction
-
Panel-mount bulkhead design for enclosure pass-through installations
-
Singlemode SC APC optimized
-
Compatible with LC, SC, or MTP/MPO fiber optic interfaces
-
Supports duplex cables: 2 × 1.5–4.5 mm cable outer diameter
-

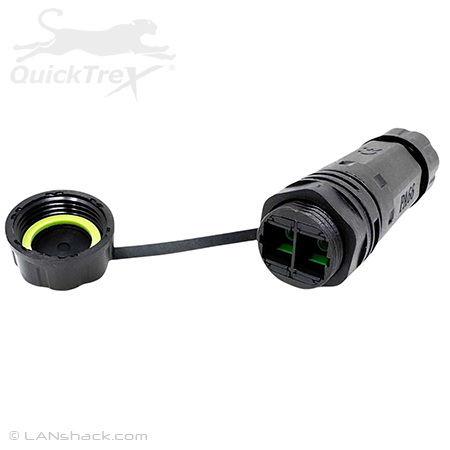

Protective dust cap with lanyard
-
Resistant to UV exposure, moisture, oils, and industrial chemicals
Specifications
Coupling Type
Bulkhead SC APC Duplex
Fiber Type
Singlemode 9/125
Insertion Loss
≤0.25dB
Fiber Coupler Material
Plastic / Ceramic
IP Rating
IP68
Maximum Water Depth
10 meters for up to 1 year
Thread Type
M20
Operating Temperature
-40°C to +85°C
Shell Material
Nylon PA66
O Ring Material
Rubber / Silicone
Color
Black
Compatible Cable OD
1.5 - 4.5 mm
