3-In-One Multifunction Fiber Optic Power Meter, Visual Fault Locator, and LAN Cable Tester

This 3-In-One Multifunction Fiber Optic Power Meter (OPM), Visual Fault Locator (VFL) and LAN Cable Tester provide essential testing at a basic level for a great price.  The power meter can measure 6 standard fiber optic wavelengths including: 850nm, 980nm, 1310nm, 1490nm, 1550nm, and 1625nm.  It also includes a Visual Fault Locator (VFL) for tracing fiber optic cabling.  The RJ45 LAN Cable Tester includes one remote and can test continuity and confirm all 8 pins are correctly aligned.  It includes a light up LCD screen and led light for testing in dim lit or dark areas. This tester has an internal rechargeable lithium battery.

Features/Specifications:

• Built-In OPM, VFL, and LAN Tester with Remote

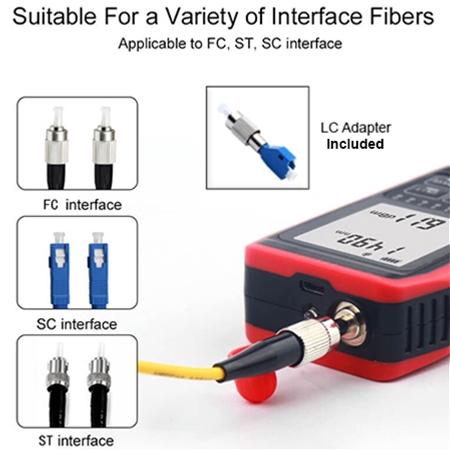

• Accepts 2.5mm Ferrules (SC, ST, & FC)
• Optional 1.5mm Adapter for LC Connectors
• Small Compact Size with Rubber Bumpers for Ruggedization
• Measuring Range: -60~8dBm
• Accuracy: 850/980nm+0.5dB,others+0.3dB
• Supports 6 Standard Wavelengths: 850/980/1310/1480/1550/1625nm
• Battery:3.7V700mAh
• Included LED Lamp
• Display Resolution: mW0.01%, DBm:0.01dBm
• VFL: 2Mw 650nm light source
• Auto Off Time: 30 Minutes
• Item Size: 22X15X5 cm
• Dust & Damage Proof Head

Certifications - Passes RoHS, FCC, and CE compliance testing, and NOYAFA is certified to the ISO 9001 standard.

Includes:

• Optical Power Meter
• RJ45 Remote Adapter
• Charging Cable
• Manual (English)

Availability:  Usually ships within 24 hours.

Urgent Orders:  Read Information
