Product Overview
The Indoor/Outdoor Singlemode Preterminated Fiber Optic Assemblies combine industry-leading quality and exceptional performance to deliver long-distance connectivity solutions. Designed with Corning® SMF-28® Ultra Glass, these assemblies provide minimal signal loss and consistent high-speed performance, making them ideal for mission-critical applications. The assemblies are encased in a flame-retardant PVC jacket with optional plenum or riser ratings to meet stringent safety requirements. Whether used for inter-building connections, campus networks, or seamless indoor-to-outdoor transitions, these assemblies ensure reliability and efficiency. Each product is pre-terminated and thoroughly tested, offering a plug-and-play solution that expedites installation and enhances overall performance.
Our one-of-a-kind QuickTreX® Custom Pre-Terminated Fiber Optic Cable Assemblies are made in the USA and have a longstanding reputation of 25+ years for premium quality and reliability that cannot be beat. We have a strict quality control manufacturing process and are ISO 9001 certified. We also offer the easiest ordering process, fastest production times and transit times.
We will keep you informed of your order status from start to finish so you can plan your installation accordingly. You will receive an order confirmation immediately, a ship date within 24 hours, and tracking information once your custom assembly ships out.
When we receive your custom order, we build the assembly to your exact specifications using premium components including Corning® glass. Your assembly will be made in the USA by highly skilled technicians under strict quality control and comes to you fully tested and ready for immediate installation. We can guarantee your fiber assembly will arrive quickly and exceed your expectations. Our experts can also help you choose the right assembly for your application.
Typical Indoor/Outdoor Jacket Applications:
Our Indoor/Outdoor Pre-Terminated Fiber Optic Cable Assemblies are perfect for connecting the networks of two buildings through the use of an underground conduit, headend termination to a fiber backbone, termination of fiber rack systems, multi-floor deployment where select fibers are used at each floor, or intra-building backbones. This cable is suitable for indoor and outdoor use, so there is no 50 foot fire code requirement traditionally found with outdoor (OSP) cable. This indoor/outdoor cable has a water blocking aramid yarn strength member surrounding the fiber optic strands and a UV resistant outer jacket making it a very versatile and perfect choice for a large variety of installations. This cable can be installed and left exposed in outdoor locations where blunt force or rodent chew damage is not a concern.
We offer our indoor/outdoor assemblies in an optional plenum rated jacket which is perfect for installations that transition from an outdoor location such as an underground conduit, to an interior location that requires a plenum rated jacket such as ventilation shafts. A cable rated for plenum installation will have low-smoke characteristics as defined by the NFPA (National Fire Protection Agency).
Standard QuickTreX® Manufacturing Features:
- Fast Custom ISO 9001 Certified Manufacturing in the USA. 2-millimeter color coded or sequentially labeled furcation tubing is installed on each strand for easy identification and extra durability before, during, and after the pull.
- Heat shrink tubing and glue set is used at the transition from the jacket to the furcation tubing providing superior strength and strain relief while pulling the assembly.
- Connectors inside the basket are staggered for less bulk and more flexibility.
- Each connector is individually plastic wrapped to prevent contamination by pulling lubricants and/or other contaminants.
- Each assembly includes a wrap around-label on both ends of the assembly which will include the QuickTreX® part number and individual serial number.
- Each Assembly includes a full test report. During our testing process all fiber ends are visually inspected with a fiberscope of 400 power or better for surface defects including, cracking, pitting, and scratches, on the glass surface of the connector. All connector ends are then tested utilizing a professional grade Loss Test Set
- The test report is saved in our database for 1 year and can be requested at any time.

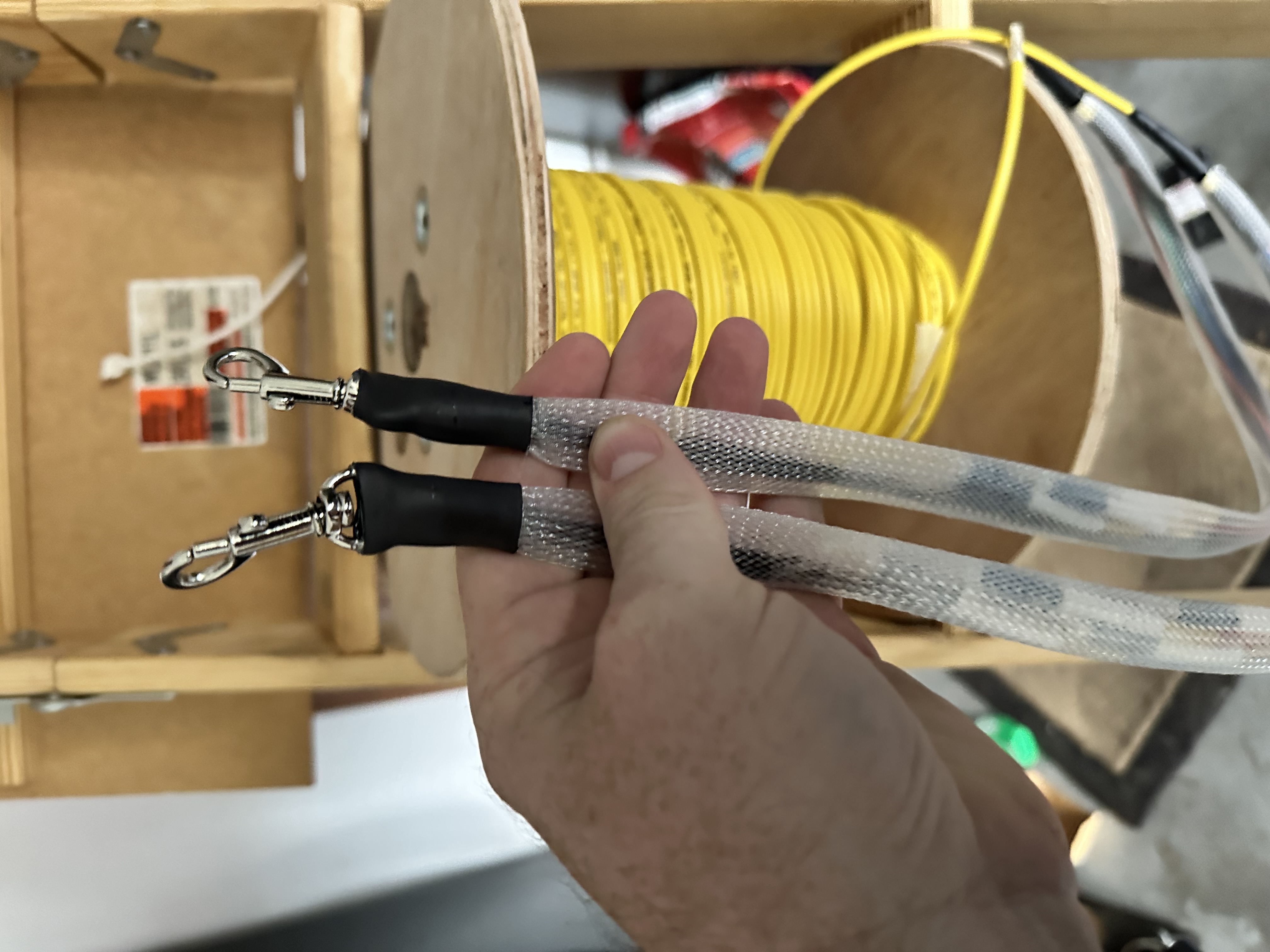

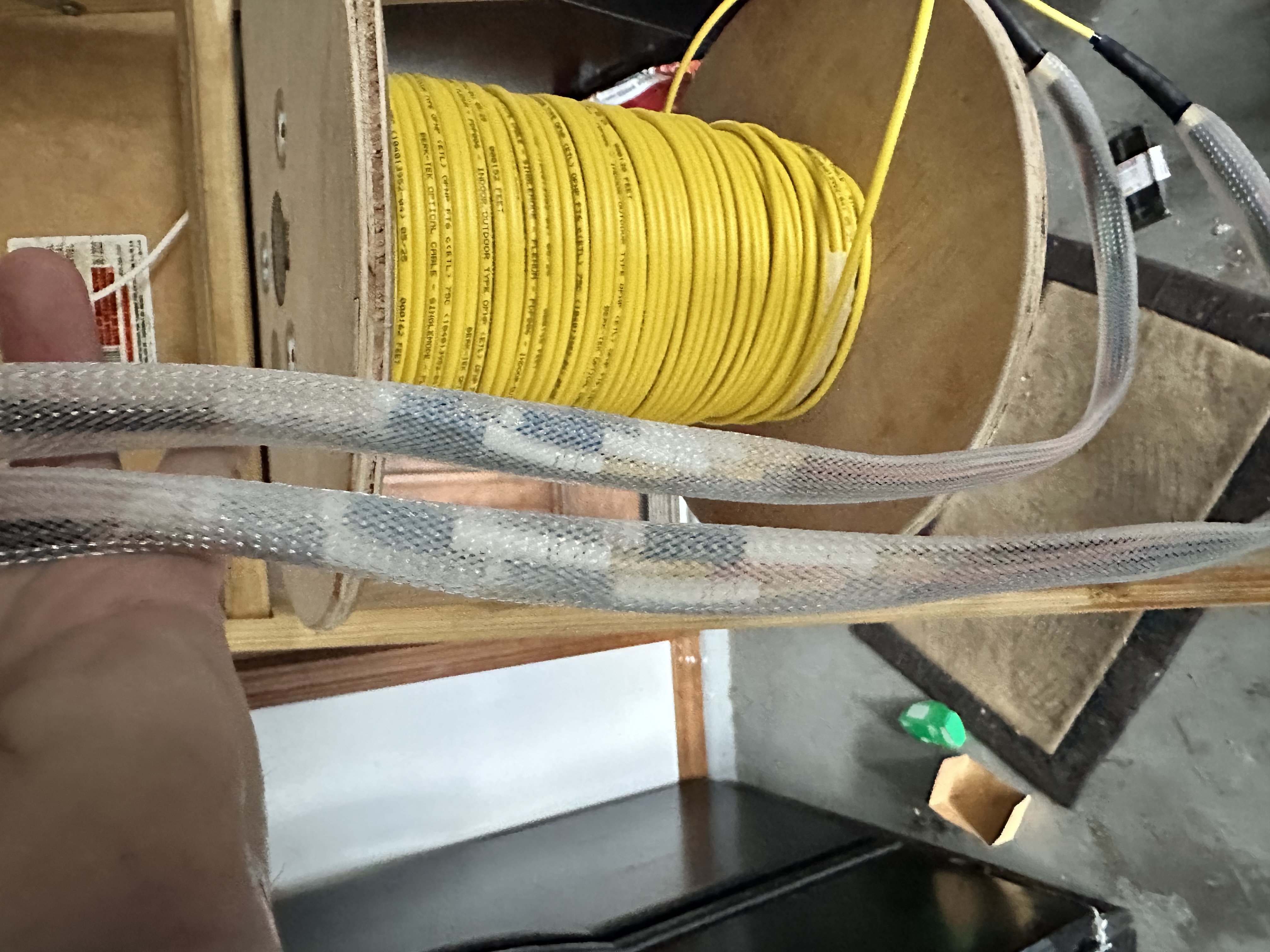

- Pulling Eyes (pulling baskets) if equipped are made from super strong polyethylene mesh and feature a free-spinning buckle to eliminate twisting of the cable during the pull. Heat shrink tubing is used at:
- Where the basket meets with the turnbuckle (pull eye hook)
- Where the basket ends and connects with the cable jacket to prevent snags and promote a smooth pull.

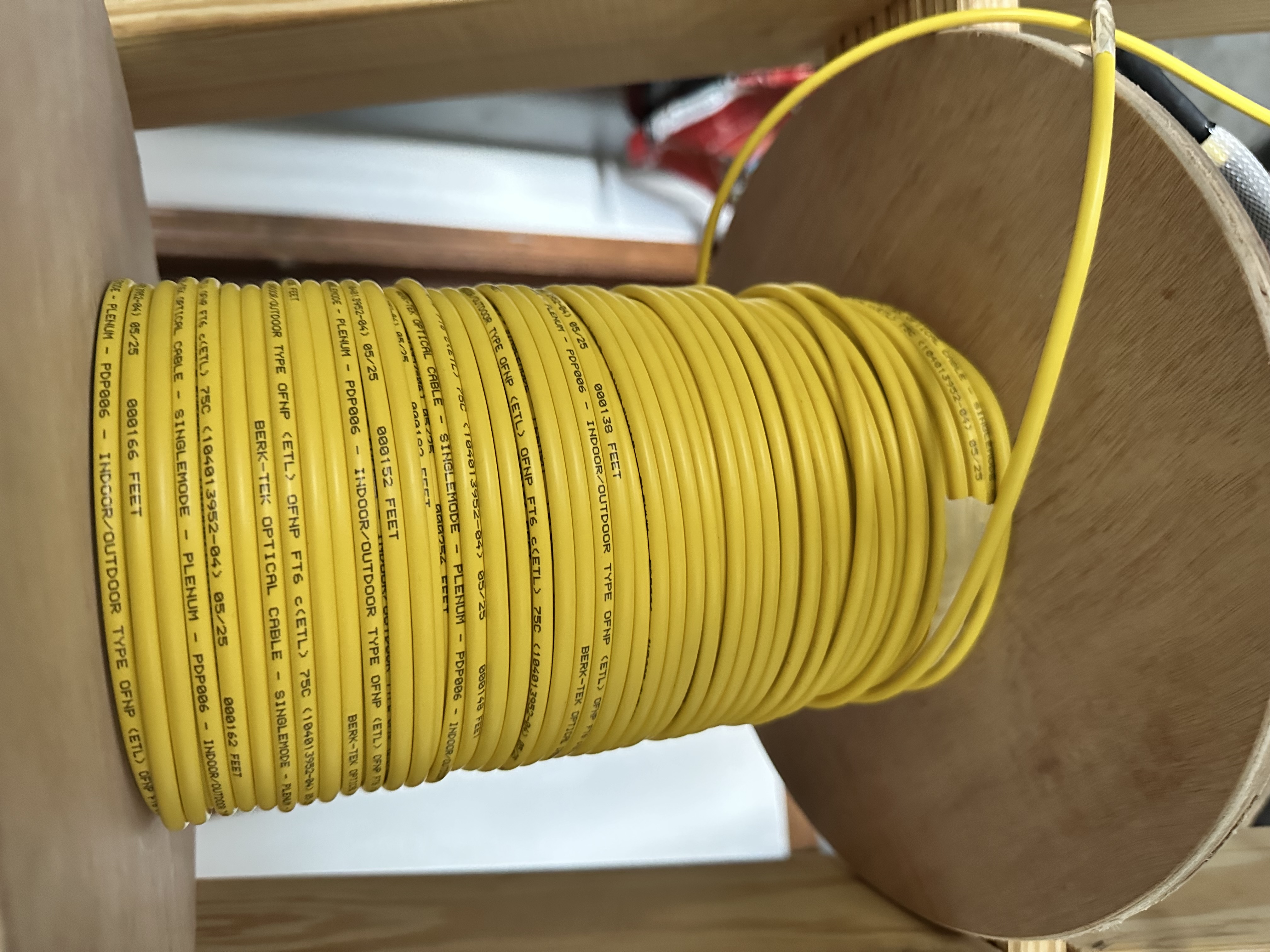

- All assemblies 100ft and over will be placed on a spool for easy installation. Assemblies under 100ft will be neatly air spooled.
Strand Count Breakdown & Rationale
Choosing the right strand count is essential for building an efficient and cost-effective network. 1 to 2 strands are ideal for simple, point-to-point connections in small setups. 4 to 24 strands provide scalability for organizations with growing data needs, such as multi-floor offices or moderate campus networks. For strand counts above 36, subunitized designs enhance manageability in high-density configurations like data centers or metro-area networks. These higher strands, including 96 and 144, serve as the backbone for large campuses or cross-regional networks, offering unparalleled capacity and reliability while supporting intricate segmentation and extended scalability.
Typical Applications by Industry
- Telecommunications: Provides uninterrupted long-distance connectivity for backbone and access networks.
- Data Centers: Enables consistent, high-speed connections between servers, racks, and switches.
- Educational Institutions: Powers campus-wide networks for classrooms, labs, and administrative operations.
- Healthcare Facilities: Handles secure and stable connectivity for medical imaging, diagnostics, and telehealth systems.
- Government and Enterprise: Supports large-scale data transmission with enhanced security for mission-critical environments.
- Industrial Automation: Delivers robust data links for IoT-enabled systems and manufacturing operations in adverse environments.
Specifications in Depth
These assemblies feature Singlemode Ultra 9/125 Corning® SMF-28® fiber, optimized for demanding, long-distance applications.
- Fiber Core Size: 9 µm
- Wavelength: 1310/1550 nm
- Link Length: Up to 10,000 meters for 1Gb/s; 5,000 meters for 10Gb/s
- Max Attenuation: 0.5dB over 0.4km
- Jacket Material: Flame Retardant PVC, with options for plenum-rated (OFNP) or riser-rated (CMP) jackets.
- Outer Jacket Color: Black or Yellow
- Connector Options: LC, SC, ST, FC (with UPC or APC polishing).
- Furcation Tubing: 2mm, EIA color-coded or consecutively labeled for easy identification.
- Pulling Eye Option: Available for one or both ends, simplifying installation in conduit systems.
- Breakout Length: 14 inches (staggered per pair).
Testing
Every assembly undergoes rigorous Insertion Loss (IL ≤ 0.2dB) and Return Loss (RL ≥ -55dB) testing, ensuring top performance in environments with operating temperatures from -40°C to +70°C.
Why 4-Strand is the Best Fit for These Applications
The 4-strand assembly offers segmented pathways, allowing for the separation of data and voice or other network resources. It balances initial scalability with a focus on future growth, making it ideal for multi-floor office spaces or single-building campuses.
Compared to lower strand counts, it provides flexibility for businesses planning incremental upgrades while maintaining lower costs than higher-capacity options.
Specifications
Fiber Type
Singlemode Ultra 9/125 Corning® SMF-28®
Strand Count
4
Fiber Core Size
9/125 - 9µm
Wavelength
1310/1550nm
Link Length
10,000/5,000 meters (1/10Gb/s@1550nm)
Bandwidth
N/A
Max. Attenuation
0.5dB / 0.4km
Jacket Material
Flame Retardant PVC
Jacket Rating
Plenum Rated (OFNP) / Riser Rated (CMP)
Flame Rating
NFPA262 - Plenum / UL1666 - Riser
Outer Jacket Color
Black or Yellow
Strength Member
Aramid Yarn
Furcation Tubing Size
2mm
Furcation Tubing Color
EIA Color Coded or Sequentially Labeled
Breakout Length
14 in (Staggered per Pair)
Connector Options
LC, SC, FC (UPC or APC) ST (UPC)
Pulling Eye/s
Optional
Length Options
10 - 5000 ft
Testing
IL Max 0.2dB, Min -0.1dB ORL -55dB
Storage Temps
-40 °C to +70 °C
Operating Temps
-40 °C to +70 °C
Nominal Outer Diameter
4.4 mm
Weight
0.015 lbs. / ft
Min. Bend Radius / Installation
6.6 cm
Min. Bend Radius / Operation
4.4 cm
Resources
Indoor/Outdoor Singlemode Build Specs
In/Outdoor Singlemode (48-288) Strand Build Specs
Indoor/Outdoor SM (1-24) Strand Cable Cut Sheet
Indoor/Outdoor SM (48-72) Strand Cable Cut Sheet
Indoor/Outdoor SM (96-144) Strand Cable Cut Sheet
Pre-Terminated Fiber Optic Assemblies Guide
Fiber Optic Definitions
Videos
When You Place An Order
Step 01
Place Your Order
Team processes & forwards to one of our USA production departments.
Step 02
Get Notifications
Receive emails on order status & estimated ship date.
Step 03
Production & Testing
Manufactured in-house with strict quality control.
Step 04
Track Your Order
Get tracking on your shipment until delivery.
Product Reviews (266)
5
5
4
3
2
1
customer
everything worked as expected. Nice pull sock set up.
Jeff Cherekcustomer
Great website easy to order, called and talked to representatives that knew how to help.
Reply from LANshack
12/22/2025 04:23:00 PM
Hi Jeff, Thank you for the excellent feedback. We appreciate you taking the time and for the business. If you ever need help again or have any questions please don't hesitate to reach out. Sincerely, LANshack
Christopher
I bought 200ft SMF 6 strand. The quality is amazing. I’m not sure what I was expecting but I am blown away. I highly recommend this to anyone looking for smf.
Vytas
First time I've ordered from LANshack, will definitely use them in the future for pre-terminated custom fiber assemblies. Shipped quick and direct to customer.
customer
great options
Questions & Answers
What is a pre-terminated fiber optic assembly?
A pre-terminated fiber optic assembly is a complete optical cable solution that comes with connectors already attached to the fiber strands.
These assemblies include components such as fiber cables, connectors, protective jackets, and pulling eyes, all designed to provide a seamless installation experience.
What length options are there for pre-terminated assemblies?
Pre-terminated fiber optic assemblies can be custom ordered to your desired length (10 feet or up to 5,000 feet.) according to your specific requirements. The assemblies are made to order based on the length you need.
All assemblies 100ft and over will be placed on a spool for easy installation. Assemblies under 100ft will be neatly air spooled.
What is a pulling eye?
A pulling eye is an additional attachment on pre-terminated fiber optic assemblies designed to facilitate installation.
It provides a sturdy attachment point for your pull string or rope, allowing you to pull the cable through conduits or tight spaces without damaging the connectors or fiber strands.
The benefit of using a pulling eye is that it reduces the risk of damage during installation, especially in complex pathways or confined spaces.
What connectors can it get on fiber optic assembly?
Common connector types available for pre-terminated fiber optic assemblies include LC, SC, ST, FC, and MTP/MPO connectors.
Connectors are staggered to reduce the pulling basket diameter and promote an easy and more flexible cable pull. Plastic wrap is also applied to prevent contamination during installation
What is a LC connector?
An LC (Lucent Connector) connector is one of the most common types of cable connectors used in fiber optic networks.
It utilizes a 1.25mm ferrule (half that of FC, SC, and ST) and push-pull latch mechanism for secure and easy connections
