QuickTreX® MTP® Premium Trunk Assemblies are built custom for your critical high density network. We start with genuine MTP® connectors from US Conec® and precision terminate them to genuine Corning SMF 28e+® Singlemode Laser Optimized Fiber. Our MTP® termination process delivers uniform height and positioning for maximum physical contact, consistently low insertion loss, and excellent return loss characteristics across the entire 12 fiber interface. These ruggedized assemblies transition to 3mm sequentially numerically labeled buffer tubes and are sequentially labeled or color coded. Our assemblies are proudly made in the USA by highly trained technicians. We have strict quality control measures in place so you can be certain your assembly will work perfect once installed.
Typical Outdoor Armored Direct Burial (OSPDB) Jacket Applications:
Our Corning Altos® Outdoor Armored Direct Burial (OSPDB) Pre-Terminated MTP Trunk Assemblies are rated for almost all outdoor applications. These MTP assemblies are the most durable and rugged assemblies we offer for permanent installation. They are designed for installation directly buried in trenches and underground installation where rodent chew damage is a concern, overhead lashed to a guy wire, or secured to a building or other permanent outdoor structure. This jacket design also offers superior crush resistance. Our outdoor armored MTP trunk assemblies are perfect for campus backbones, headend termination to a fiber backbone, and intra-building backbones. They are also designed for a variety of voice, data, video, and image applications. If installing in conduit we recommend using at least a 3" diameter conduit to accommodate for the assembly breakout.
Choosing a direct burial rated jacket helps save time and money in outdoor applications where conduit is necessary, or in industrial environments which require extra protection. Although this option is priced higher than standard indoor/outdoor distribution cable that needs to be ran inside conduit, it outweighs its overall price when compared the cost of purchasing conduit and then the labor involved having to pull the cable through it. This outdoor (OSPDB) armored cable has a heavy duty polyethylene (PE) UV and water proof jacket, corrugated steel tubing, and water blocking swellable tape surrounding the fiber optic strands. Note: Polyethylene (PE) OSP cable is restricted to a 50 feet run indoors due to fire-code restrictions.
Features:
Genuine US Conec MTP Connectors
Genuine Corning Glass
Consistent Super Low Insertion and Return Loss
Polished & Tested in Accordance with ECI Standards & Specs
3mm Labeled Furcation Tubing on Breakout Strands
Staggered Connectors for Easy Installation
All Breakouts & Strands are Color Coded or Sequentially Labeled
Includes Full Test Report
Optional Heavy Duty Swiveling Pulling Eye
Made in the USA
Strict Quality Control
Fast Production Times
RoHS compliant
ISO 9001 Certified Manufacturing

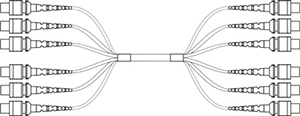

This 72 fiber cable assembly will have six 12 Fiber MTP® Connector on each end as illustrated below:
NOTE: MTP® is a Registered Trademark of US Conec Ltd. Clearcurve® is a Registered Trademark of Corning Corp.
