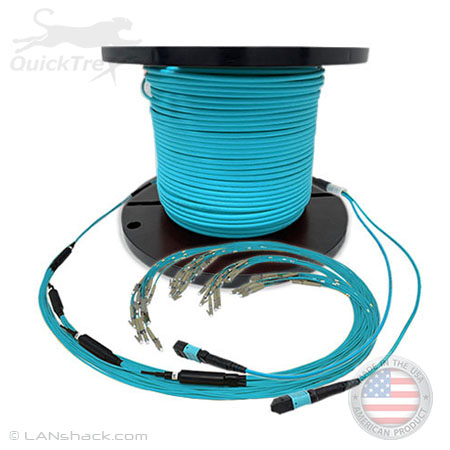

QuickTreX® MTP® Premium Fanout Assemblies are built custom for your critical network. We start with genuine MTP® connectors from US Conec® and precision terminate them to genuine Corning Clearcurve® OM4 Laser optimized fiber. Our MTP® termination process delivers uniform height and positioning for maximum physical contact for consistently low insertion loss and excellent return loss characteristics across the entire 24 fiber interface. These ruggedized assemblies transition to 2mm sequentially numerically labeled buffer tubes and simplex connectors (to your choosing). Our assemblies are proudly made in the USA by highly trained technicians. We have strict quality control measures in place so you can be certain your assembly will work perfect once installed.

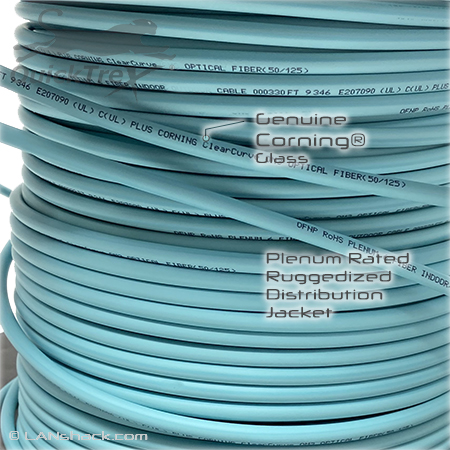

Our indoor plenum rated jacket assemblies are rated for all indoor installations, including plenum rated spaces. A cable rated for plenum installation will have low-smoke characteristics as defined by the NFPA (National Fire Protection Agency).
Typical Applications Include:
- Headend Termination to a fiber "backbone"
- Termination of fiber rack systems
- Data Center & Other High Density Applications
- Multi-floor deployment where select fibers are used at each floor
- Intra-building "backbones"
Features:

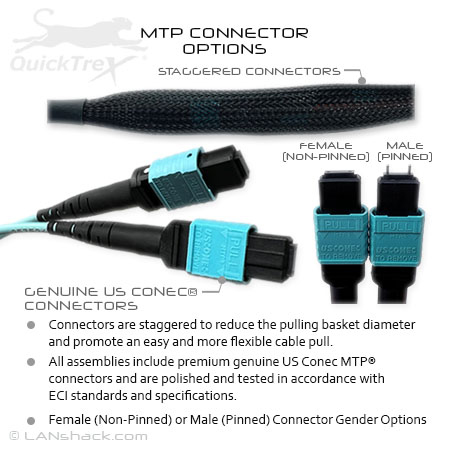

- Genuine US Conec MTP Connectors
- Genuine Corning Glass
- Consistent Super Low Insertion and Return Loss
- Polished & Tested in Accordance with ECI Standards & Specs

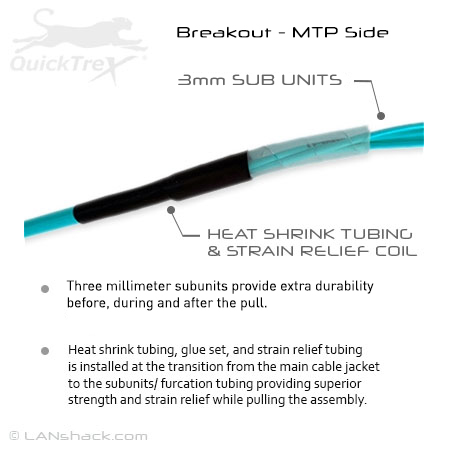

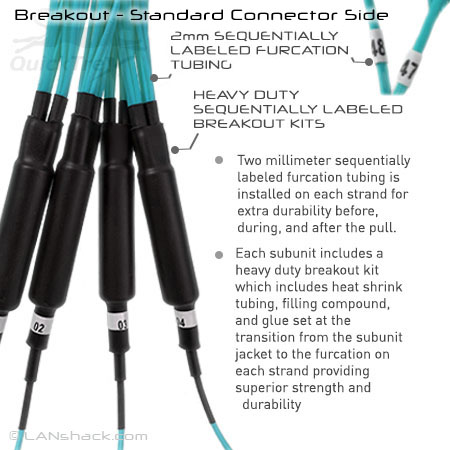

- 2mm Labeled Furcation Tubing on Breakout Strands

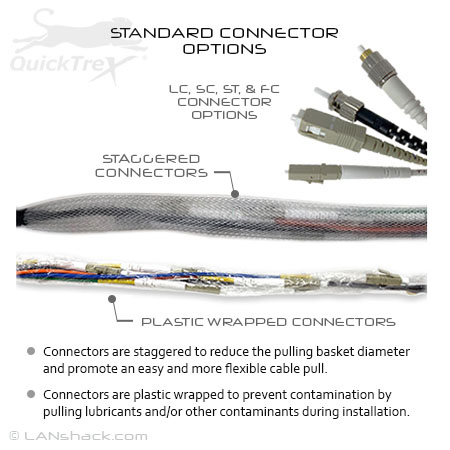

- Staggered Connectors for Easy Installation
- All Breakouts & Strands are Sequentially Labeled
- Clips for Duplexing the Standard Connectors are Included

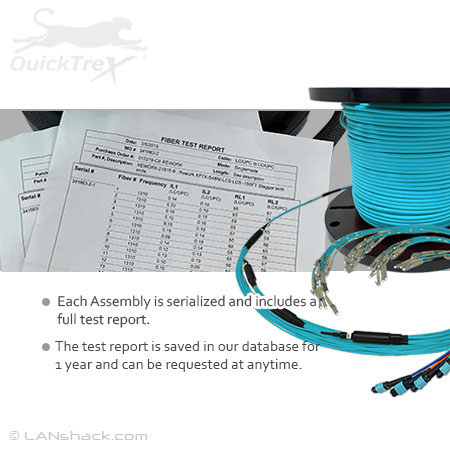

- Includes Full Test Report
- Optional Heavy Duty Swiveling Pulling Eye
- Made in the USA
- Strict Quality Control
- Fast Production Times
- ISO 9001 Certified Manufacturing
NOTE: MTP® is a Registered Trademark of US Conec Ltd. Clearcurve® is a Registered Trademark of Corning Corp.
Specifications
Fiber Type
Multimode OM4 50/125 Corning® ClearCurve®
Strand Count

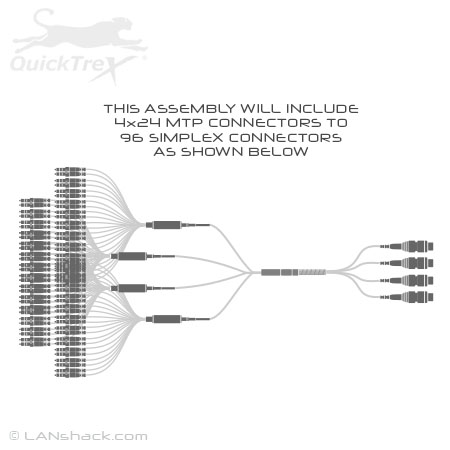

4 x 24 to 96 Simplex
Fiber Core Size
50/125 - 50µm
Wavelength
850/1300nm
Link Length
550 meters (10Gb/s@850nm)
Bandwidth
4700Mhz @ 850nm / km
Max. Attenuation
3.0dB / 1.2km
Jacket Material
Flame Retardant PVC
Flame Rating
NFPA 262
Outer Jacket Color
Aqua
Buffer Tubes
Flame Retardant PVC
Strength Member
Aramid Yarn
Central Strength Member
Fiber Reinforced Plastic Rod
Coating on Central Strength Member
Flame Retardant PVC
Furcation Tubing Size
3mm
Furcation Tubing Color
EIA Color Coded or Sequentially Labeled

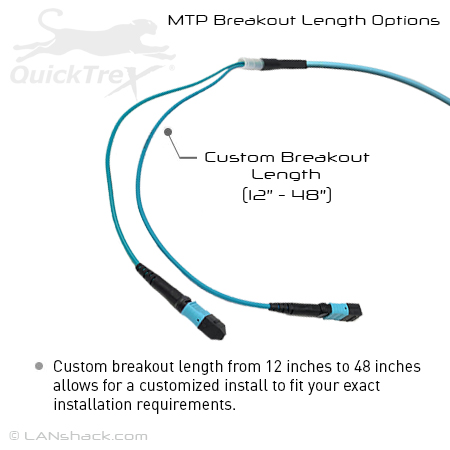

Breakout Length
Customizable
Connector Options
Male (With Pins) & Female (Without Pins)
Pulling Eye/s
Optional
Length Options
3 - 1000 ft
Testing
IL Max 0.2db, Min -.01db
Storage Temps
-40 °C to +70 °C
Operating Temps
0 °C to +70 °C
Nominal Outer Diameter
13.0 mm
Weight
0.102 lbs. / ft
Min. Bend Radius / Installation
19.5 cm
Min. Bend Radius / Operation
13.0 cm
Videos
When You Place An Order
Step 01
Place Your Order
Team processes & forwards to one of our USA production departments.
Step 02
Get Notifications
Receive emails on order status & estimated ship date.
Step 03
Production & Testing
Manufactured in-house with strict quality control.
Step 04
Track Your Order
Get tracking on your shipment until delivery.
Product Reviews (190)
5
5
4
3
2
1
Vytas
First time I've ordered from LANshack, will definitely use them in the future for pre-terminated custom fiber assemblies. Shipped quick and direct to customer.
customer
LANshack really was accommodating and very helpful with my fiber needs. They went to every extent to make sure our network was up and running in no time!
ProductSections
I have used LANshack for custom pre-terminated fiber assemblies for a couple of years now. The quality of the product is top notch. Setting up a new building and ordered this 1200' to connect 2 buildings together. Great termination quality. Zero issues installing and connecting. Connection lit from the start. Thank you very much.
Allen
Whenever we need to install a fiber link from one building to another, we order pre-terminated assemblies from LANshack ! Always done right, very reasonable turn around times. Shipping deals are always a plus.
customer
Great customer service. Products in stock.
Questions & Answers
What are Indoor MTP® / MPO Fanout Assemblies used for?
They transition from a high-density MTP® connector to individual simplex connectors, providing efficient fiber distribution in data centers, enterprise networks, and telecom infrastructures.
What fiber types are available in these assemblies?
They are available in OM3, OM4 multimode fibers for short-range high-speed transmission and singlemode fibers for long-distance, low-latency connectivity.
Are these assemblies custom-built?
Yes, each assembly is built to order, allowing for specific strand counts, length, fiber types, and connector configurations.
Which connectors are used on these assemblies?
They feature genuine US Conec® MTP® connectors on one end, transitioning to standard simplex connectors on the other end for easy integration.
Are these assemblies suitable for plenum spaces?
Yes, all assemblies are plenum-rated, meeting NFPA standards for safe installation in air-handling spaces.
