Encircled Flux compliant, user-friendly, affordable, and compact. EF compliance ensures 10G+ multimode network standards. With EF mode controller cables, Fiber OWL 7 certifiers ensure standards-based compliance. On-screen diagrams guide connections, with text-based help available. Fiber OWL 7 certifiers are smaller, more affordable than bulky alternatives, pocket-sized, and operable with one hand. Includes: (ADVANCED FIBER CERTIFIER + FULL-FEATURED BUILT-IN OTDR), (1) F7+M multimode Tier 2 certifying power meter, (1) USB charger/cable, (1) OC-1 1.25mm connector cleaner, USB flash drive, NIST certificate, ruggedized case (light source, fiber rings, and video scope not included).

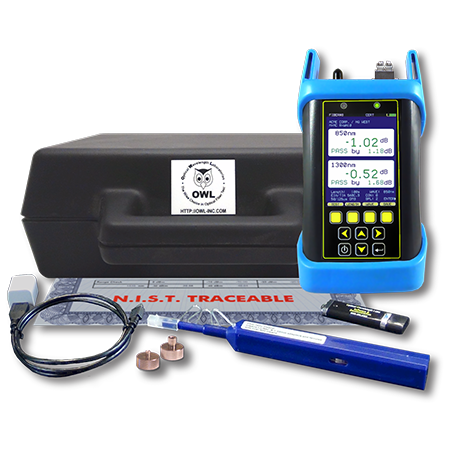

Fiber OWL 7+ Multimode Tier 2 Certifier
Includes:
- (ADVANCED FIBER CERTIFIER + FULL-FEATURED BUILT-IN OTDR)
- (1) F7+M multimode Tier 2 certifying power meter
- (1) USB Charger/cable
- (1) OC-1 1.25mm in-adapter connector cleaner
- USB flash drive with software and documentation
- NIST certificate
- Ruggedized hard-shell carrying case
(light source, fiber rings, and video scope not included)
Specifications
OTDR Fiber Type
Multimode
OTDR Output Wavelength
850nm / 1300nm
OTDR Dynamic Range (SNR=1)
850nm: 27dB | 1300nm: 29dB
OTDR Data Point Spacing
1m
OTDR Pulse Width
1m / 2m / 5m / 10m / 20m / 50m / 100m / 200m
OTDR Distance Accuracy
1m + (distance in meters/10000)
OTDR Distance Range
20km
OTDR Number of Stored Traces
Minimum Trace Distance: 3000+ | Maximum Trace Distance: 400
OTDR ORL Measurement
Up to 76dB
OTDR Event Dead Zone
2m
OTDR Attenuation Dead Zone
5m
OTDR Index of Refraction
1.4000 to 1.6000
OTDR Maximum Data Points
64,000
Display
2.8 Color LCD
Battery Type
Lithium Polymer
Battery Life
Up to 20 Hours
Dimensions
2.87 x 4.42 x 1.25
Weight
10 oz. (284 g)
Power Meter Photodetector
InGaAs
Power Meter Fiber Type
Multimode / Singlemode
Power Meter Wavelengths
850 / 980 / 1300 / 1310 / 1490 / 1550 / 1625nm
Power Meter Accuracy
±0.15dB
Power Meter Resolution
0.01dB
Power Meter Measurement Units
dBm / dB
Power Meter Measurement Range
+5 to -70 dBm (typical; varies with wavelength)
VFL Output Wavelength
650nm
VFL Output Power
1mW
VFL Operating Modes
CW / Flash
