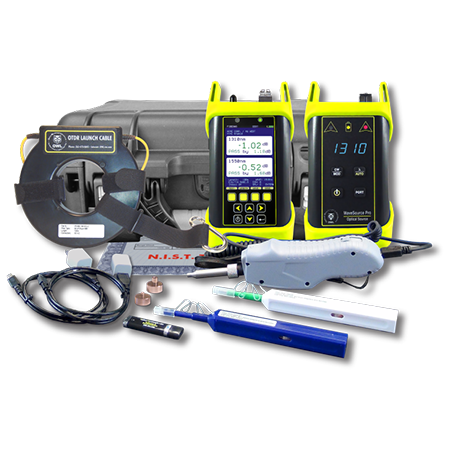

Fiber OWL 7+ Singlemode Bundle
Bundle includes:
- (ADVANCED FIBER CERTIFIER + FULL-FEATURED BUILT-IN OTDR)
- (1) F7+S singlemode Tier 2 certifying power meter
- (1) WPSX singlemode 1310/1550 laser source
- (2) USB Chargers/cables
- (1) SM fiber ring (LC-LC) *
- (1) VS-400-U USB fiber microscope
- (1) OC-1 1.25mm in-adapter connector cleaner
- (1) OC-2 2.5mm in-adapter connector cleaner
- USB flash drive with software and documentation
- NIST certificate
- Ruggedized hard-shell carrying case
Specifications
OTDR Fiber Type
Singlemode
OTDR Output Wavelength
1310nm / 1550nm
OTDR Dynamic Range (SNR=1)
1310nm: 28dB | 1550nm: 27dB
OTDR Data Point Spacing
Up to 64km: 1m | Over 64km: 2m
OTDR Pulse Width
1m / 2m / 5m / 10m / 20m / 50m / 100m / 200m / 500m / 1000m
OTDR Distance Accuracy
Up to 64km: 1m + (distance in meters/10000) | Over 64km: 2m + (distance in meters/10000)
OTDR Distance Range
128km
OTDR Number of Stored Traces
Minimum Trace Distance: 3000+ | Maximum Trace Distance: 200
OTDR ORL Measurement
Up to 76dB
OTDR Event Dead Zone
2m
OTDR Attenuation Dead Zone
5m
OTDR Index of Refraction
1.4000 to 1.6000
OTDR Maximum Data Points
64,000
Display
2.8 Color LCD
Battery Type
Lithium Polymer
Battery Life
Up to 20 Hours
Dimensions
2.87 x 4.42 x 1.25
Weight
10 oz. (284 g)
Power Meter Photodetector
InGaAs
Power Meter Fiber Type
Multimode / Singlemode
Power Meter Wavelengths
850 / 980 / 1300 / 1310 / 1490 / 1550 / 1625nm
Power Meter Accuracy
±0.15dB
Power Meter Resolution
0.01dB
Power Meter Measurement Units
dBm / dB
Power Meter Measurement Range
+5 to -70 dBm (typical; varies with wavelength)
VFL Output Wavelength
650nm
VFL Output Power
1mW
VFL Operating Modes
CW / Flash
Light Source Output Type
Singlemode
Light Source Launch Method
FP Laser
Light Source Center Wavelength
1310 ± 20nm | 1550nm ± 30nm
Light Source Spectral Width
1310nm: 2nm | 1550nm: 2nm
Light Source Output Power
-10dBm
Light Source Output Modes
CW / Modulated
Light Source Initial Accuracy
±0.1dB
Light Source Battery Life
Up to 150 hours (Rechargeable Lithium Polymer)
Light Source Operating Temperatures
0°C to +55°C
Light Source Storage Temperatures
0°C to +75°C
Light Source Dimensions
2.87 x 4.42 x 1.25 in. (72.9 x 112.3 x 31.8 mm)
Light Source Weight
10oz (284g)
