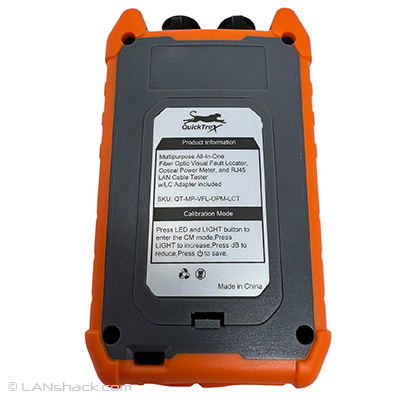

Multipurpose All-In-On Fiber Optic Visual Fault Locator, Optical Power Meter, and RJ45 LAN Cable Tester

This Multipurpose All-In-One Fiber Optic Visual Fault Locator, Optical Power Meter, and RJ45 LAN Cable Tester offers the essential testing a basic level for a great price.  The visual fault locator built in allows you to trace fiber optic cabling and identify ports in your patch panel or fiber optic enclosures.  The tester can accept SC, ST, and FC connectors.  We offer an optional LC adapter if you need to test LC connectors.  The power meter can measure 8 standard fiber optic wavelengths including: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, and 1650nm.  The RJ45 LAN Cable Tester includes one remote and can test continuity and confirm all 8 pins are correctly aligned.  It includes a light up LCD screen and also includes a small LED flashlight at the top.  The tester takes two standard AAA batteries (not included).

Features/Specifications:

• Built-In VFL, Power Meter, and LAN Tester
• Batteries: 2 X AAA (Not Included)
• Accepts 2.5mm Ferrules (SC, ST, & FC)

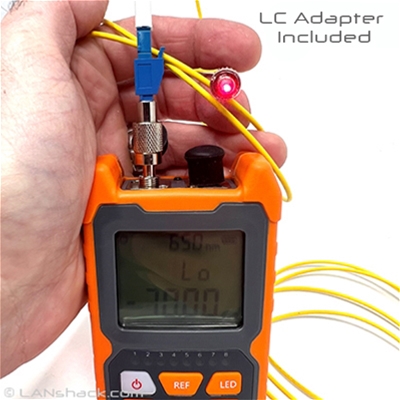

• Optional 1.5mm Adapter for LC Connectors
• Small Compact Size with Rubber Bumpers for Ruggedization
• Calibration Wavelengths: 800~1700nm
• Easily Identify a Break, Bend, or Specific Strand in Your Fiber Optic Cable
• Detector Type: InGaAs
• Measurement Range: -70~+6dBm
• Accuracy: ±0.05dB
• Standard Wavelength: 850, 980, 1300, 1310, 1490, 1550, 1625, and 1650nm
• Display Resolution: mW0.01%, DBm:0.01dBm
• VFL: 2Mw 650nm light source
• Working Temperature: -10°C~+50°C
• Storage Temperature: -40°C~+70°C
• Auto Off Time: 10 Minutes
• Dimensions: 112mm x 66mm x 30mm
• Weight: 150g
• Dust & Damage Proof Head

• Lanyard Included
