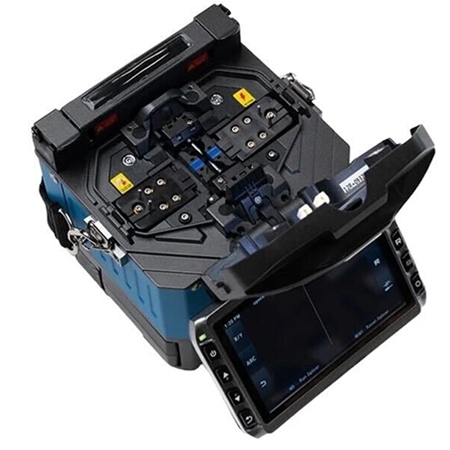

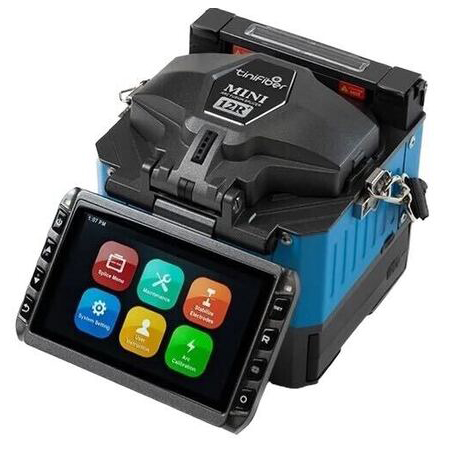

The new TiniFiber Mini 12R+ can handle up to 12 ribbon fiber strands simultaneously.
This fusion splicer offers comprehensive touchscreen control and an innovative two-CCD camera system for high-accuracy fiber alignment. It is fully compatible with Splice-On Connector (SOC) technology and comes with a thermal stripper, precision cleaver, cleaning kit, and all the consumables needed to get up and running immediately.
Features:
- Fast Splicing Time
- 15 sec with singlemode fiber
- 20 sec Heating time
- *9 sec with continuous heating mode
- Comes with 2 Battery Packs
- Full Touch Screen
- MPO SOC Compatible and Includes Thermal Stripper and Precision Cleaver
Specifications
Weight w/o Battery
3.05 lbs
Splicing Method
Fixed V-Grooves Alignment
Typical Splice Loss
0.05dB (SM) | 0.02dB (MM) |
0.08dB (DS) | 0.08dB (NZDSF)
Splice Time
Typically 15s
Electrode Lifespan
3,000 splices
Applicable Fibers
SM (G.652/G.657) | MM (G.651) | DS (G.653)
| NZDSF (G.655)
Cleave Length
10 - 13mm
Coating Diameter
Single: 0.16 - 3.0mm | Ribbon: 0.25 - 0.4mm
Cladding Diameter
80-150µm
Heating Programs
Up to 38 user-configurable modes (6
from factory)
Heating Time
Typically 20s
Data Output
Mini USB
Splice Programs
Up to 140 user-configurable modes (40
from factory)
Splice Memory
5,000 Records
Illumination
LED
Battery
5200mAh 11.1V Li-ion
Typical Full Charge: 220 Cycles
(Splice + Heat)
~ 0.8lbs
Power Supply
AC 100-240V input
DC 12.6V 1.8A
Monitor
4.3" Touch Screen
Tempered Glass
Cameras
2 CCD system
Dimensions
124 x 123.2 x 138mm, splicer unit
450 x 290 x 225mm,
yellow hard case
Wind Protection
15 m/s (~33mph)
Operating Environment
Relative Humidity: 0-95% |
Temp Range: -10 to +20°C |
Elevation: 0-5,000m
Storage Conditions
Relative Humidity 0-95% | Temp Range: -10 to +40°C
Pull Test
1.96 - 2.25N
