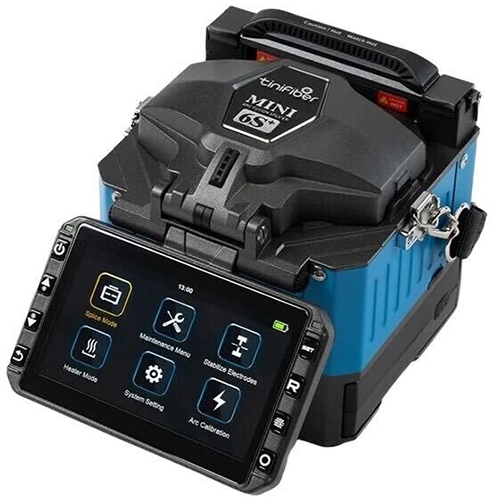

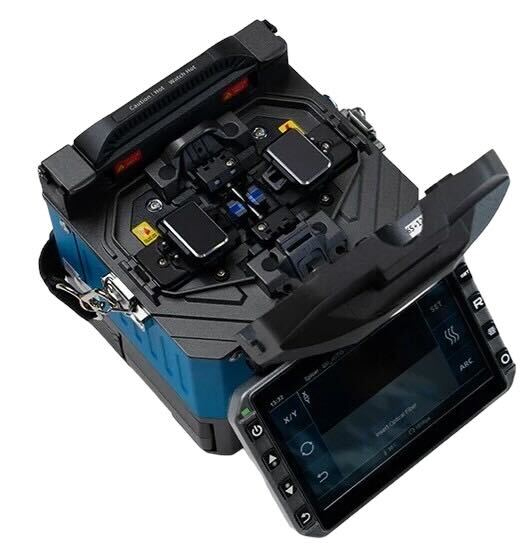

The TiniFiber 6S+ is the industry’s smallest core alignment fusion splicer. The six-motor design can splice up to six fibers at a time.
It offers comprehensive touchscreen control and an innovative two-CCD camera system for high-accuracy fiber alignment. It is fully compatible with Splice-On Connector (SOC) technology and comes with a thermal stripper, precision cleaver, cleaning kit, and all the consumables needed to get up and running immediately.
The Mini 6S+ measures 4.88 x 4.85 x 5.43 inches (124 x 123.2 x 138 mm) and weighs 3.4 lbs (1.54 kg). Typical splice loss ranges from 0.01 dB to 0.04 dB depending on cable type, and a ‘quick mode’ will deliver a single-mode splice time of just six seconds. Up to 90 splice programs and up to 32 heating programs can be configured by the user, and the splice memory accommodates up to 10,000 records and 2,000 splice images.
Features:
- Smallest and Most Rugged Core Alignment Splicer with 6 Motors
- Fast Splicing Time
- 6 sec with Singlemode Fiber
- 10 Sec Heating Time
- *6 Sec with Continuous Heating Mode
- Comes with 2 Battery Packs
- Full Touch Screen
- SOC Compatible and Includes Thermal Stripper and Precision Cleaver
Specifications
Weight w/o Battery
3.4 lbs
Splicing Method
Core Alignment; Automatic Optical Core Analysis & Tracking (AOCAT) System
Typical Splice Loss
0.02dB (SM) | 0.01dB (MM) | 0.04dB (DS) |
0.04dB (NZDSF)
Splice Time
SM Quick Mode: 6s | SM Average: 10s
sec
Electrode Lifespan
5,500 splices
Applicable Fibers
SM (G.652/G.657) | MM (G.651) | DS (G.653)
| NZDSF (G.655)
Cleave Length
5 - 16mm
Coating Diameter
0.1 - 3.0mm
Cladding Diameter
80-150µm
Heating Programs
Up to 32 user-configurable modes (10 from factory)
Heating Time
Typically 10s (60mm sleeve) | 5s (micro sleeve)
Data Output
USB-C
Splice Programs
Up to 90 user-configurable modes (49 from factory)
Splice Memory
10,000 records and 2,000 splice images
Illumination
LED
Battery
5200mAh 11.1V Li-ion
Typical Full Charge: 220 Cycles
(Splice + Heat)
~ 0.8lbs
Power Supply
AC 100-240V input
DC 12.6V 1.8A
Monitor
4.3" Touch Screen
Tempered Glass
Cameras
2 CCD system
Dimensions
124 x 123.2 x 138mm, splicer unit
450 x 290 x 225mm,
yellow hard case
Wind Protection
15 m/s (~33mph)
Operating Environment
Relative Humidity: 0-95% |
Temp Range: -10 to +20°C |
Elevation: 0-5,000m
Storage Conditions
Relative Humidity 0-95% | Temp Range: -10 to +40°C
Pull Test
1.96 - 2.25N
